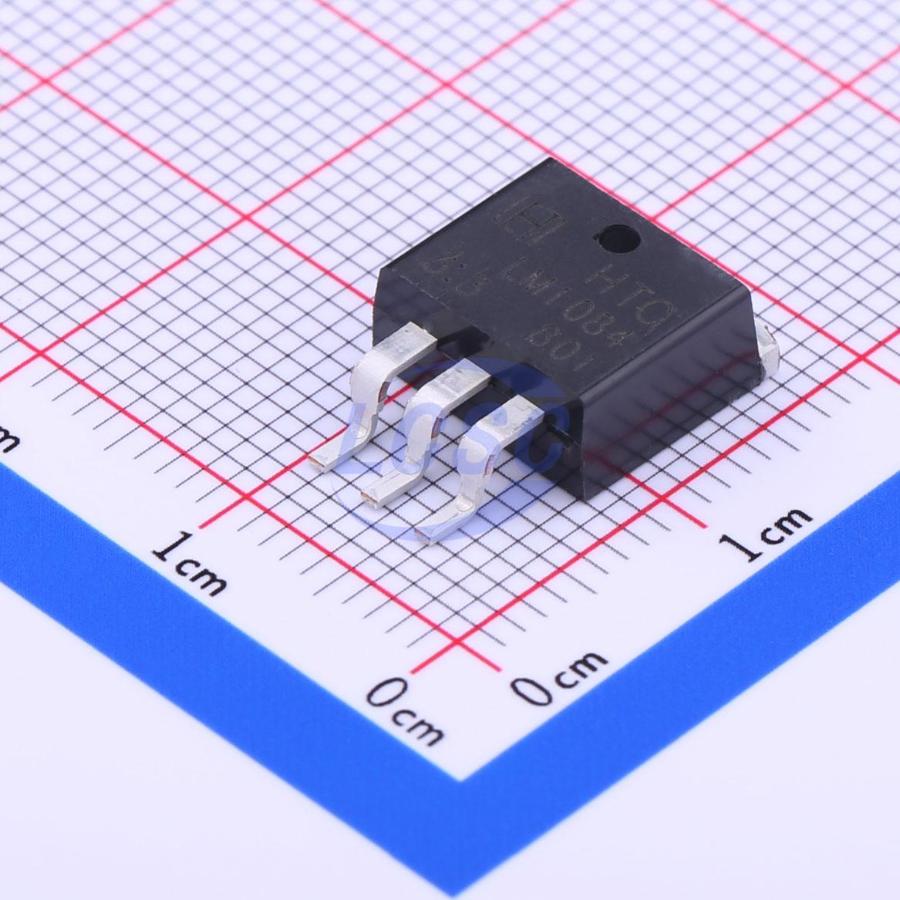

LM1084R-3.3 The LM1084R-3.3 is a low dropout positive voltage regulator from HTC. It provides a fixed 3.3V output and can deliver up to 5A of current.
Mfr Part #:

LM1084R-3.3

Available from 1 distributors
Mfr Name: HTC
HTC
The LM1084R-3.3 is a low dropout positive voltage regulator from HTC. It provides a fixed 3.3V output and can deliver up to 5A of current.
✓ Total Stock: 12 pcs

LM1084R-3.3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request 1215P//A/ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LM1084R-3.3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Junction Temperature
Mounting Type
Output Current
Output Voltage
SVHC Present
View Similar Products (0)

LM1084R-3.3 Description

Short technical summary and product information.

The LM1084R-3.3 is a linear voltage regulator IC manufactured by HTC. It is designed to provide a stable 3.3V output voltage with a low dropout voltage, making it suitable for applications where power efficiency is important.



Key electrical specifications include a maximum output current of 5A, typical line regulation of 0.015%, and typical load regulation of 0.1%. The device features integrated current limiting and thermal protection for enhanced reliability. The maximum input-output voltage differential for this specific variant is 27V.



This regulator is available in TO-220 and TO-263 packages, typically requiring through-hole mounting. Its pin configuration is similar to the LM317, allowing for easy integration into existing designs. The operating temperature range is -65 to 150°C, with a junction temperature limit of 150°C.

LM1084R-3.3 Quick Information

Product Type: Voltage Regulator - Linear
Series: LM1084
Canonical Name: LM1084R-3.3 Low Dropout Positive Regulator
Subcategory: Linear

LM1084R-3.3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LM1084R-3.3 Features

  • Fixed 3.3V output voltage.
  • Maximum output current of 5A.
  • Low dropout voltage characteristic.
  • Integrated thermal protection.
  • Available in TO-220 package.

LM1084R-3.3 Applications

  • Powering 3.3V microprocessor and FPGA cores.
  • Providing clean rails for digital logic circuits.
  • Post-regulation stage in switching power supplies.
  • Battery-powered equipment requiring stable voltage.
  • Industrial control systems needing reliable PMIC.

LM1084R-3.3 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the output voltage of the LM1084R-3.3?

The LM1084R-3.3 provides a fixed output voltage of 3.3V.

What is the maximum output current for the LM1084R-3.3?

The LM1084R-3.3 can deliver a maximum output current of 5A.

What is the maximum input-output voltage differential for the LM1084R-3.3?

The maximum input-output voltage differential for the LM1084R-3.3 is 27V.

What are the available package types for the LM1084R-3.3?

The LM1084R-3.3 is available in TO-220 and TO-263 packages.

What is the storage temperature range for the LM1084R-3.3?

The storage temperature range for the LM1084R-3.3 is -65 to 150°C.
