| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | 1505 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Lead Style | |
| Load Capacitance | |
| Mounting Type | |
| Noise | |
| Operating Temperature Range | |
| PSRR | |
| Quiescent Current | |
| Thermal Resistance |

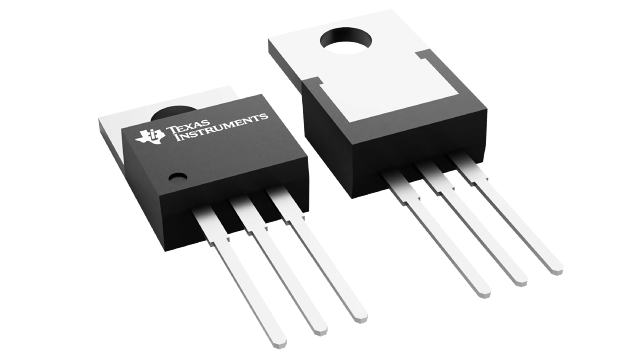

The LM1084IT-3.3/NOPB is a high-performance linear voltage regulator manufactured by Texas Instruments. It is designed to provide a stable output voltage with a maximum output current of 5.5A. The device features an adjustable output voltage capability, allowing for flexible design configurations, as well as fixed output voltage versions.
Key electrical characteristics include a wide input voltage range from 2.6V to 29V and a low dropout voltage of typically 1300mV at 5A. The regulator offers good performance with a typical noise level of 38 µVrms and a PSRR of 30 dB at 100 KHz. It also includes built-in current limiting and thermal shutdown protection for enhanced reliability.
The LM1084IT-3.3/NOPB operates within an industrial temperature range of -40°C to 125°C, making it suitable for demanding applications. It is available in TO-220 and TO-263 package types, supporting both through-hole and surface-mount designs. The device's design is similar to the industry-standard LM317, offering a familiar pinout for ease of integration.
This linear regulator is well-suited for various power management applications where a reliable and stable voltage source is required. Its robust features and wide operating conditions make it a versatile component for both commercial and industrial electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.19 | $1.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is from 2.6 V minimum to 29 V maximum.
It is available in TO-220 and TO-263 packages.
The operating temperature range is -40°C to 125°C.
The maximum output current is 5.5 A (typical 5 A).
This part number provides a fixed output voltage of 3.3 V.
The typical noise is 38 µVrms.
The typical PSRR is 30 dB at 100 kHz.
