LM101AJ

The LM101AJ from Texas Instruments is a general-purpose operational amplifier designed for high performance and ease of application. It features advanced processing techniques that result in significantly reduced input currents and improved temperature drift characteristics compared to older industry standards.

Key electrical specifications include a maximum offset voltage of 3 mV over temperature, a maximum input current of 100 nA, and a maximum offset current of 20 nA. The device boasts a slew rate of 10 V/μs when configured as a summing amplifier. It is designed to operate reliably over a wide temperature range of -55°C to 125°C.

This operational amplifier offers several features that make its application nearly foolproof, such as overload protection on inputs and outputs, and no latch-up when the common-mode range is exceeded. Frequency compensation can be tailored to specific applications, allowing for optimization for stability or high-frequency performance. The low input currents make it particularly suitable for integrators, timers, sample-and-hold circuits, and low-frequency waveform generators.

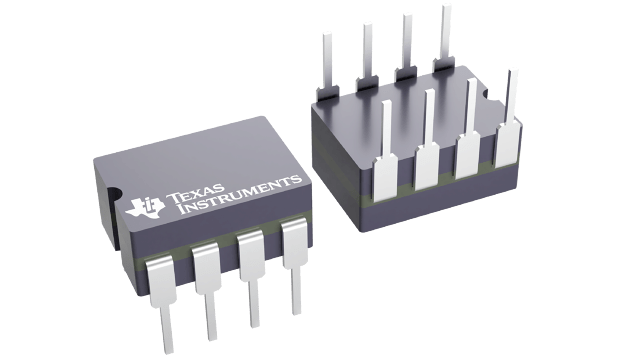

The LM101AJ is housed in an 8-pin CDIP (NAB) package, suitable for through-hole mounting. It is supplied in tubes with a package quantity of 40 units.
