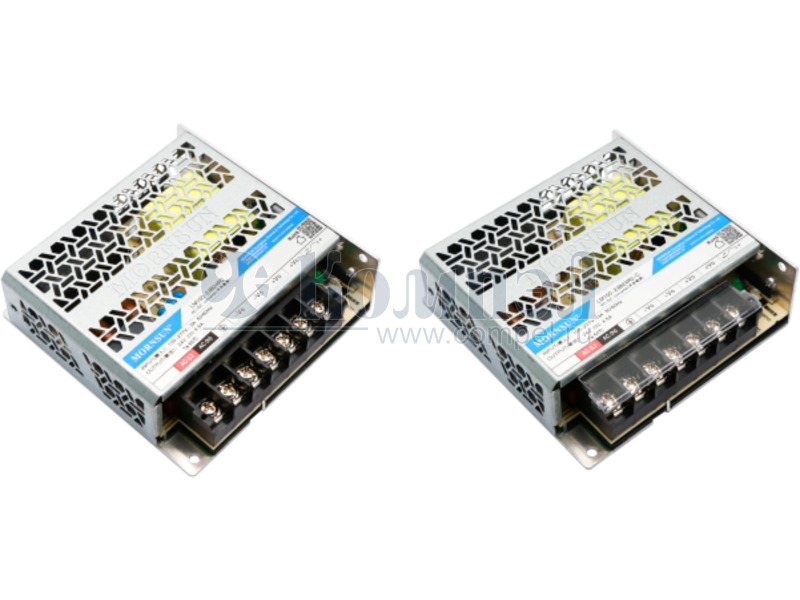

The MORNSUN LM100-23B12R2 is an enclosed AC/DC switching power supply designed for industrial applications. It delivers a nominal output power of 102W with a 12V output voltage and 8.5A current.
This power supply features a universal input voltage range of 80-305VAC and also accepts DC input. It operates efficiently with 90% typical efficiency at 230VAC and maintains performance across a wide ambient temperature range of -40°C to +85°C.
Key electrical specifications include ±1% load regulation and ±0.5% line regulation. The unit offers high I/O isolation up to 4000VAC and includes protection against short circuit, over-current, and over-voltage conditions. It meets standards such as IEC/EN62368 and EN60335.
With a compact size of 99.0mm x 97.0mm x 30.0mm, it is suitable for chassis mounting. The LM100-23BxxR2 series is designed for cost-effectiveness, low no-load power consumption, and high reliability, making it suitable for industrial, LED lighting, security, and telecommunications sectors.
The output power is 102W.
The nominal output voltage is 12V and the current is 8.5A.
The input voltage range is 80-305 VAC or 100-430 VDC.
The typical efficiency at 230VAC is 90%.
The operating temperature range is -40°C to +85°C.
The dimensions are 99.0mm x 97.0mm x 30.0mm.
It meets standards including IEC/EN62368-1, EN61558-1, and EN60335-1.
