| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

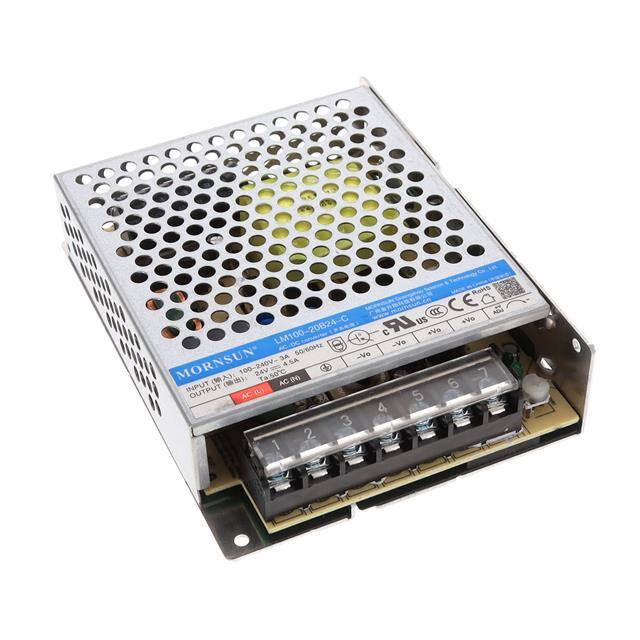

The Morning Star Industrial LM100-20B24-C is an enclosed AC/DC converter designed for reliable power conversion. It delivers 108W of power with a 4.5A output current and features a 24V output voltage.
Key specifications include a high efficiency of 90%, an adjustable output, and the capability for DC input. The converter supports universal input and is approved by CB, CCC, CE, cURus, and UL standards. Its operating temperature range is -30°C to 70°C with derating.
Designed for applications such as household appliances and ITE (Commercial), this converter is built for robust performance. It has a voltage rating of 4 kV and adheres to standard numbers 60335-1 and 62368-1.
The unit is chassis mountable with dimensions of 129.0mm x 97.0mm x 30.0mm. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1.
The LM100-20B24-C has a power output of 108W.
The output current is 4.5 A.
The operating temperature range is -30°C to 70°C (With Derating).
Key features include adjustable output, DC input capability, and universal input.
It complies with standard numbers 60335-1 and 62368-1.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
