| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

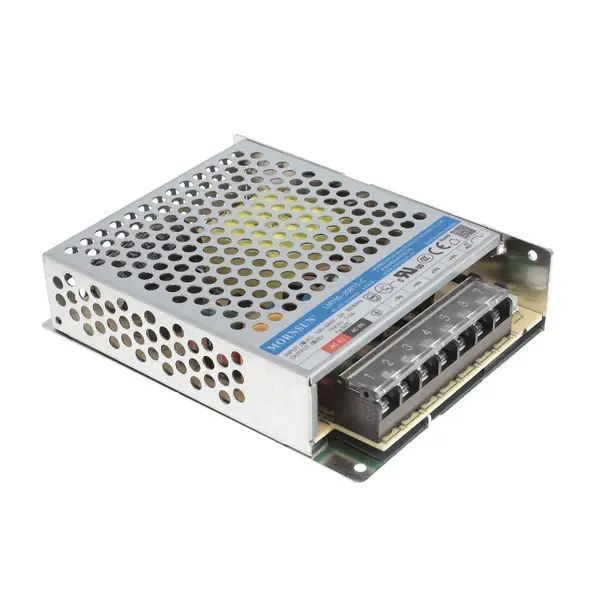

The LM100-20B15-C from Morning Star Industrial is an enclosed AC/DC converter designed for reliable power conversion. It delivers a stable 15V output with a maximum power rating of 105W and an output current of 7A.
This converter features a universal input voltage range of 85-264 VAC or 120-370 VDC, making it suitable for global applications. It boasts an efficiency of 87.5% and operates within a temperature range of -30°C to 70°C with derating. The unit is designed for chassis mounting and includes safety approvals from CB, CCC, CE, cURus, and UL.
Key specifications include an isolation voltage of 4kV and compliance with standards such as 60335-1 and 62368-1. Its dimensions are 129.0mm x 97.0mm x 30.0mm. The LM100-20B15-C is suitable for applications in household appliances and ITE (Commercial) equipment.
The LM100-20B15-C provides a single output voltage of 15V.
The input voltage range is 85~264 VAC or 120~370 VDC.
The isolation voltage is 4kV.
The operating temperature range is -30°C to 70°C with derating.
The efficiency is 87.5%.
The package is an enclosed box type, chassis mountable.
It holds approvals: CB, CCC, CE, cURus, UL.
