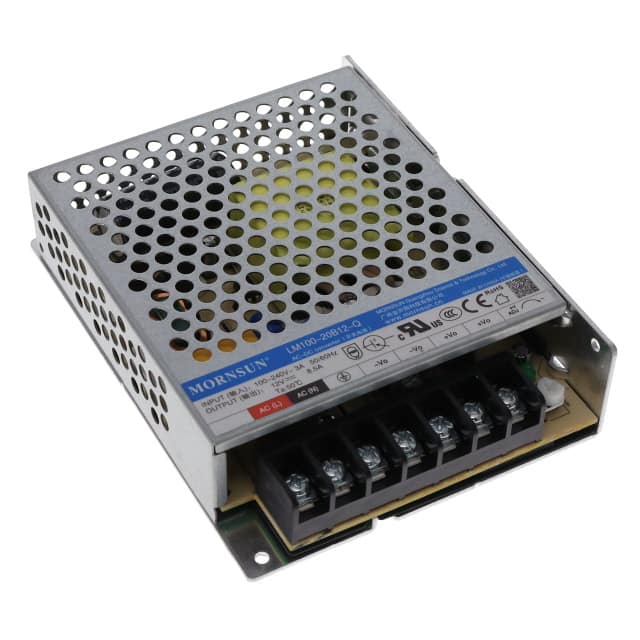

The Mornsun LM100-20B12-Q is a versatile 102W AC/DC enclosed power supply designed for various applications. It operates with a universal input voltage range of 85~264VAC or 120~373VDC, providing flexibility for global use.
This converter boasts a 12V output and a rated current of 8.5A, delivering a total power of 102W. Key electrical specifications include an efficiency of 87.5% and an isolation voltage of 4kV. It is designed with features such as adjustable output, DC input capability, and conformal coating for enhanced durability.
The LM100-20B12-Q is suitable for ITE (Commercial) and household appliance applications. It is designed for chassis mounting, facilitating integration into various systems. The operating temperature range is -30°C to 70°C with derating, ensuring reliable performance in different environments. Compliance is met with standards like 60335-1 and 62368-1, and it holds approvals from CB, CCC, CE, cURus, and UL.
Dimensions are 129.0mm x 97.0mm x 30.0mm (5.08" x 3.82" x 1.18").
The output voltage is 12V.
The efficiency is 87.5%.
85~264VAC or 120~373VDC.
-30°C to 70°C with derating.
CB, CCC, CE, cURus, UL.
102W.
129.0mm (5.08 inches) length, 97.0mm (3.82 inches) width, 30.0mm (1.18 inches) height.
