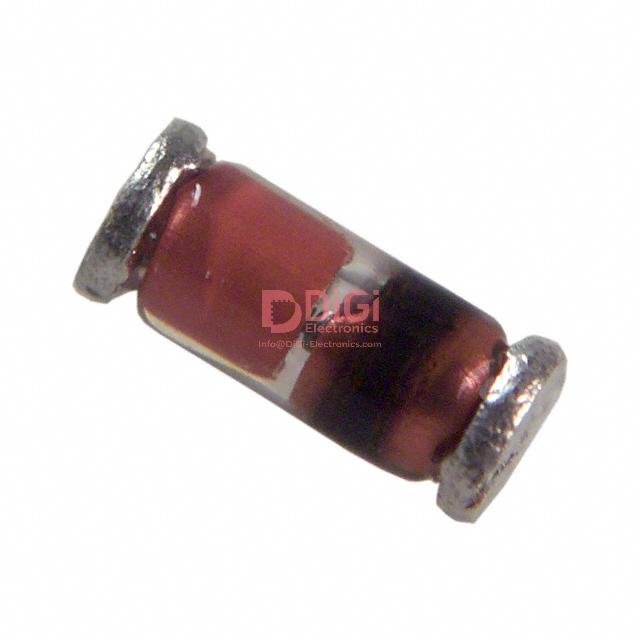

LLSD101C The Diodes Incorporated LLSD101C is a surface mount Schottky barrier diode. It offers a low forward voltage drop and fast reverse recovery time.
Mfr Part #:

LLSD101C

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated LLSD101C is a surface mount Schottky barrier diode. It offers a low forward voltage drop and fast reverse recovery time.
✓ Total Stock: 19 pcs
$ Price Range: $0.40

LLSD101C Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LLSD101C Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Power Dissipation
View Similar Products (0)

LLSD101C Description

Short technical summary and product information.

The Diodes Incorporated LLSD101C is a Schottky barrier diode designed for surface mount applications. It features a low forward voltage drop, guard ring construction for transient protection, fast reverse recovery time, and low reverse capacitance.



Key electrical specifications include a peak repetitive reverse voltage of 60V, a forward continuous current of 15mA, and a maximum forward voltage drop of 0.41V at 1.0mA. The reverse leakage current is rated at 200nA at 50V, and the total capacitance is 2.0pF at 0V and 1MHz. The reverse recovery time is a fast 1.0ns.



This diode is housed in a glass MiniMELF package, suitable for automated assembly processes. It operates within a temperature range of -55°C to +125°C and is RoHS compliant.



Applications for this diode include general-purpose rectification and switching where low forward voltage and fast switching speeds are required.

LLSD101C Quick Information

Product Type: Schottky Barrier Diode
Canonical Name: LLSD101C Schottky Barrier Diode
Subcategory: Rectifier

LLSD101C Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

LLSD101C Estimated Pricing

Qty Low High
1+ $0.40 $0.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

LLSD101C Features

  • Low forward voltage drop.
  • Fast reverse recovery time.
  • Low reverse capacitance.
  • Guard ring for transient protection.
  • MiniMELF surface mount package.

LLSD101C Applications

  • High-speed switching power supplies.
  • Low-power rectification circuits.
  • RF detector and mixer circuits.
  • Protection clamping in low-voltage systems.
  • General purpose signal diode applications.

LLSD101C FAQs

7 frequently asked questions generated from this part’s specifications.
What is the maximum reverse voltage rating of the LLSD101C?

The peak repetitive reverse voltage is 60V, working peak reverse voltage is 50V, and DC blocking voltage is 40V.

What is the forward current rating of the LLSD101C?

The maximum forward continuous current is 15mA.

What is the forward voltage drop of the LLSD101C?

At 1mA, the forward voltage drop is 0.39V maximum; at 15mA, it is 0.90V maximum.

What is the reverse recovery time of the LLSD101C?

The reverse recovery time is 1.0ns maximum.

What package is the LLSD101C available in?

The LLSD101C is available in a MiniMELF surface mount package with tape and reel options of 2500 or 10000 pieces.

What is the total capacitance of the LLSD101C?

The total capacitance is 2.2pF maximum at 0V and 1MHz.

Is the LLSD101C RoHS compliant and lead free?

Yes, the LLSD101C has a lead free finish and is RoHS compliant.

LLSD101C Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
