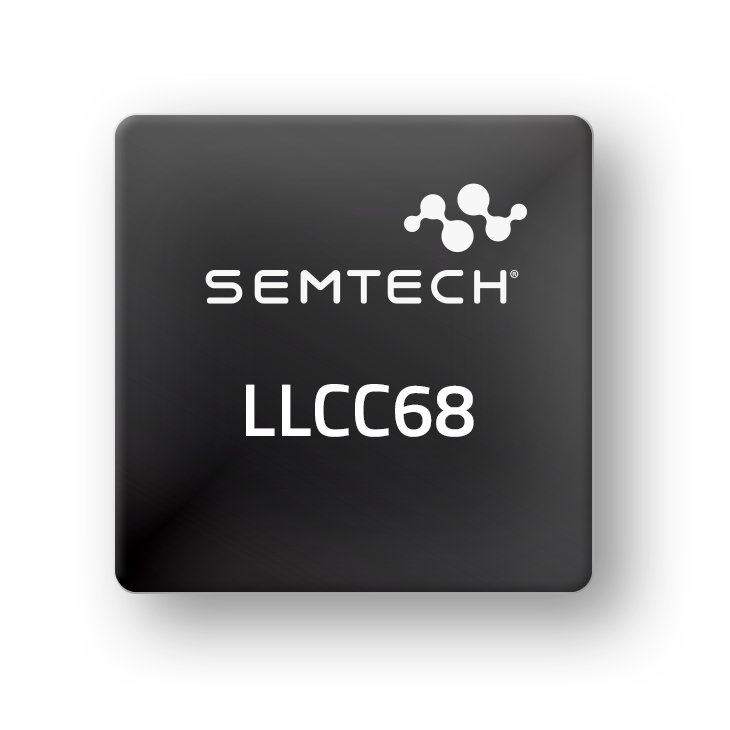

LLCC68IMLTRT The Semtech LLCC68IMLTRT is a LoRa, Sub-GHz RF Transceiver IC featuring integrated TxRx and MCU. It offers a transmit power of 22dBm and a receiver sensitivity of -129dBm.
Mfr Part #:

LLCC68IMLTRT

Available from 1 distributors
Mfr Name: Semtech
Semtech
The Semtech LLCC68IMLTRT is a LoRa, Sub-GHz RF Transceiver IC featuring integrated TxRx and MCU. It offers a transmit power of 22dBm and a receiver sensitivity of -129dBm.
✓ Total Stock: 1,070 pcs
$ Price Range: $710.26

LLCC68IMLTRT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,070 pcs
On Request
1070 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LLCC68IMLTRT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Data Rate (Max)
Frequency
Lead Spacing
Modulation
Mounting Type
Operating Temperature
Power
Protocol
RF Family
Sensitivity
Serial Interfaces
Supplier Device Package
Type
Voltage
View Similar Products (0)

LLCC68IMLTRT Description

Short technical summary and product information.

The Semtech LLCC68IMLTRT is an RF Transceiver IC designed for LoRa and Sub-GHz applications. It integrates both the transceiver and a microcontroller, offering a versatile solution for wireless communication.



Key electrical specifications include an operating voltage range of 1.8V to 3.7V, with current consumption ranging from 4.2mA to 10.1mA. The device supports a maximum transmit power of 22dBm and boasts a high receiver sensitivity of -129dBm. It operates across a wide frequency range of 150MHz to 960MHz and supports modulation schemes such as FSK and GFSK, with a maximum data rate of 300kbps.



This transceiver IC utilizes SPI for serial communication and is specified for operation within an industrial temperature range of -40°C to 85°C. It is housed in a 24-VFQFN Exposed Pad package, with the supplier device package specified as 24-QFN (4x4). The mounting type is surface mount.



LoRa is a de facto wireless platform for the Internet of Things (IoT), enabling long-range, low-power communication. Semtech's LoRa chipsets connect sensors to the cloud, facilitating real-time data and analytics for enhanced efficiency and productivity.

LLCC68IMLTRT Quick Information

Product Type: RF Transceiver IC
Canonical Name: LLCC68IMLTRT RF Transceiver IC
Subcategory: RF Transceiver ICs

LLCC68IMLTRT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LLCC68IMLTRT Estimated Pricing

Qty Low High
1+ $710.26 $710.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

LLCC68IMLTRT Features

  • LoRa, Sub-GHz RF Transceiver IC
  • Integrated TxRx and MCU functionality
  • High transmit power of 22dBm
  • Excellent receiver sensitivity of -129dBm
  • Wide operating frequency range

LLCC68IMLTRT Applications

  • Ideal for IoT sensor networks
  • Suitable for smart home applications
  • Enables long-range wireless communication
  • Supports Sub-GHz frequency bands

LLCC68IMLTRT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the LLCC68IMLTRT?

The operating voltage is 1.8V to 3.7V.

What is the package type for this RF Transceiver IC?

It is supplied in a 24-VFQFN Exposed Pad package.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

Is the LLCC68IMLTRT RoHS compliant?

Yes, it is RoHS3 Compliant.

What is the maximum transmit power?

The maximum transmit power is 22dBm.

What is the receiver sensitivity?

The receiver sensitivity is -129dBm.

What communication protocols does this IC support?

It supports LoRa™ protocol and operates within the 802.15.4 RF Family.
