| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance @ Vr, F | |
| Diode Type | |
| Forward Current | |
| Mounting Type | |
| Operating Temperature Range | |
| Power Dissipation | |
| Reverse Recovery Time | |
| Reverse Recovery Time (trr) | |
| SVHC Present | |
| Supplier Device Package |

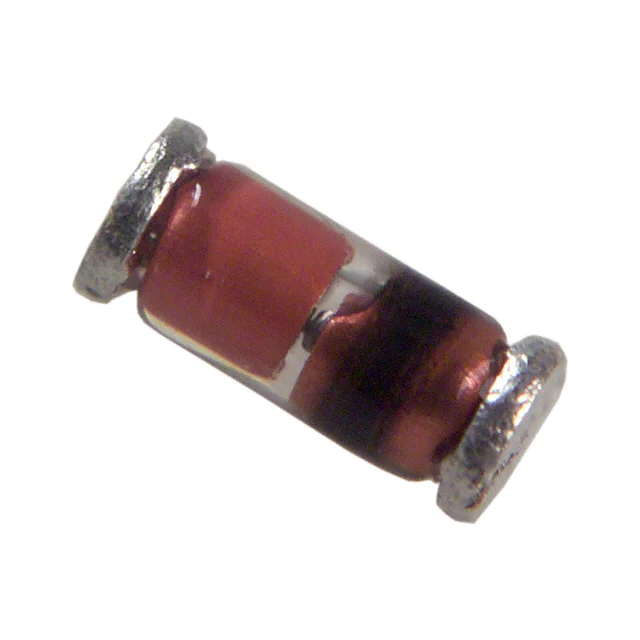

The LL4148 is a surface mount fast switching diode designed for various electronic applications. It features a reverse voltage rating of 75V and an average rectified output current of 150mA.
Key electrical characteristics include a maximum forward voltage of 1V at 10mA and a typical diode capacitance of 4pF at 1MHz. The diode boasts a fast switching speed with a reverse recovery time of 4ns, making it suitable for high-frequency applications.
Constructed with hermetically sealed glass and compression bonded construction, the LL4148 is housed in a compact LL:34 (Mini-MELF) package. Its surface mount capability and corrosion-resistant surfaces ensure reliability in demanding environments.
This diode operates within a temperature range of -55°C to +150°C, providing robust performance across various conditions. It is RoHS compliant, indicating adherence to environmental standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The LL4148 diode has a working inverse voltage of 75 V and a peak reverse voltage of 100 V.
The LL4148 diode has a forward current of 0.15 Ampere and an average rectified output current of 150 mA.
The operating temperature range for the LL4148 diode is -55 to +150 C.
The LL4148 diode is supplied in a LL:34 (Mini:MELF) package, also referred to as DO-213AC, MINI-MELF, SOD-80.
The reverse recovery time for the LL4148 diode is 4 ns.
The typical diode capacitance of the LL4148 is 4 pF at VR=0V, f=1MHz.
