| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,501 pcs
|
9501 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
980 pcs
|
980 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-28 22:15:22 | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Case Material | |
| Current | |
| Forward Continuous Current | |
| Mounting Type | |
| Non-Repetitive Peak Reverse Voltage | |
| Operating Temperature | |
| Peak Repetitive Reverse Voltage | |
| Polarity | |
| Power Dissipation | |
| RMS Reverse Voltage | |
| Reverse Leakage Current (Maximum @ VR=75 V, TA=150 °C) | |
| Reverse Leakage Current (Maximum @ VR=75 V, TA=25 °C) | |
| Reverse Recovery Time (trr) | |
| Speed | |
| Standard Package Quantity | |
| Supplier Device Package | |
| Tape & Reel | |
| Tape and Reel | |
| Technology | |
| Termination Finish | |
| Thermal Resistance Junction-to-Ambient | |
| Voltage | |
| Weight |

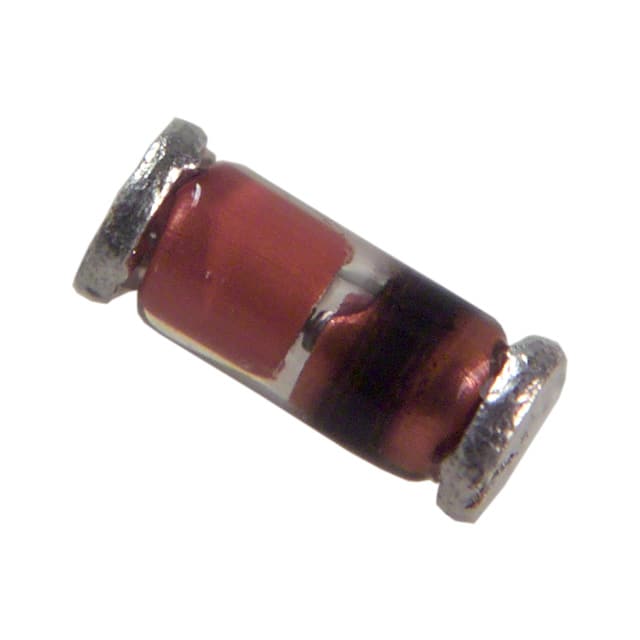

The LL4148-13 is a fast switching surface mount diode manufactured by Diodes Incorporated. It is designed for general purpose rectification and high-speed switching applications. The diode features a peak repetitive reverse voltage of 75V and an average rectified output current of 150mA. Its forward voltage is typically 1V at 10mA, and it offers a fast reverse recovery time of 4ns under standard test conditions.
The device is housed in a MiniMELF (DO-213AC) glass package, which is suitable for automatic insertion and surface mount assembly. The package has a weight of approximately 0.05 grams and is rated for an operating temperature range of -65°C to 175°C. The diode is RoHS compliant with a lead-free finish (Sn97.5Ag2.5) and has a moisture sensitivity level of 1 per J-STD-020.
With a power dissipation of 500mW and a thermal resistance of 300 K/W junction-to-ambient, the LL4148-13 is suitable for low-power signal switching and rectification in compact electronic designs. It is available in tape and reel packaging with a standard quantity of 10,000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 10,000+ | $0.02 | $0.02 |
| 20,000+ | $0.02 | $0.02 |
| 30,000+ | $0.02 | $0.02 |
| 50,000+ | $0.02 | $0.02 |
| 70,000+ | $0.01 | $0.01 |
| 100,000+ | $0.01 | $0.01 |
| 250,000+ | $0.01 | $0.01 |
| 500,000+ | $0.01 | $0.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
75V peak repetitive reverse voltage.
300mA forward continuous current, 150mA average rectified output current.
Maximum 1V at 10mA forward current.
4ns at IF=10mA, IR=1mA, VR=6V, RL=100Ω.
MiniMELF (DO-213AC) surface mount package.
-65°C to 175°C.
Yes, it is RoHS compliant with lead-free finish.
