| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 2004 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Construction | |
| Core Material | |
| DC Resistance | |
| Inductance | |
| Mounting Type | |
| Rated Current | |
| SVHC Present | |
| Test Frequency | |
| Tolerance |

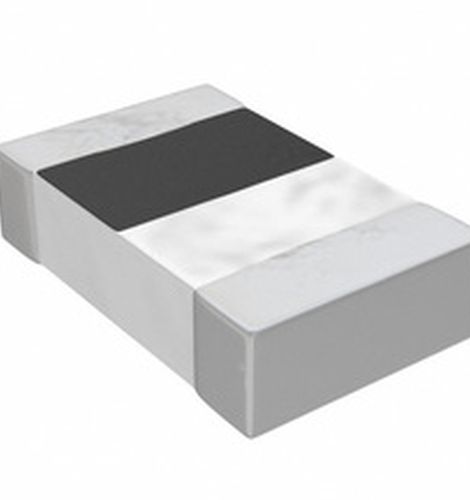

The Toko America Inc LL1608-FH33NK is a fixed inductor designed for RF applications. It features a multilayer chip construction with a ceramic core material.
This general-purpose inductor has an inductance of 33 nH with a tolerance of 10%. It offers a rated current of up to 600 mA and a low DC resistance of 550 mOhm. The operating temperature range is from -40 °C to 100 °C.
The LL1608-FH33NK is housed in a compact 0603 SMT package, measuring 1.6 mm in length and 800 µm in width and height. It is surface-mount compatible and features wraparound terminal shapes. The inductor is not shielded and has a self-resonance frequency of 1.58 GHz.
This component is suitable for various RF circuits requiring stable inductance and current handling capabilities within a small form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.19 | $0.19 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 33 nH with a tolerance of ±10%.
The typical DC resistance is 550 mOhm.
The maximum rated current is 600 mA.
The self-resonant frequency is 1.58 GHz.
It is available in a 0603 SMD package measuring 1.6 mm x 0.8 mm x 0.8 mm.
The operating temperature range is from -40°C to +100°C.
The minimum quality factor is 18 measured at 100 MHz.
