| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,568 pcs
|
9568 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Depth | |
| Dimensions | |
| Height | |
| Inductance | |
| Length | |
| Tolerance |

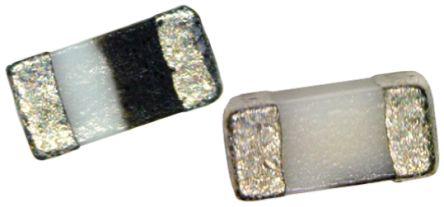

This Toko America Inc LL1005-FHL8N2J is a multilayer ceramic SMD inductor from the LL1005-FHL series. It offers an inductance of 8.2 nH with a tight tolerance of ±5%. The inductor is designed for surface mount applications and comes in a compact 1005 case size.
Key electrical characteristics include a maximum DC resistance of 250mΩ and a maximum DC current rating of 400mA. It boasts a minimum quality factor of 9 and a maximum self-resonant frequency of 4GHz, making it suitable for various electronic circuits. The operating temperature range is from -55°C to +125°C.
The dimensions of this inductor are 1 x 0.5 x 0.5mm, with a length of 1mm, height of 0.5mm, and depth of 0.5mm. The core material is ceramic, and the construction is multilayer, ensuring reliability and performance in demanding applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 8.2 nH.
The tolerance is ±5%.
The maximum DC current rating is 400 mA.
The maximum self-resonant frequency is 4 GHz.
The dimensions are 1 x 0.5 x 0.5mm.
The package/case is 1005.
