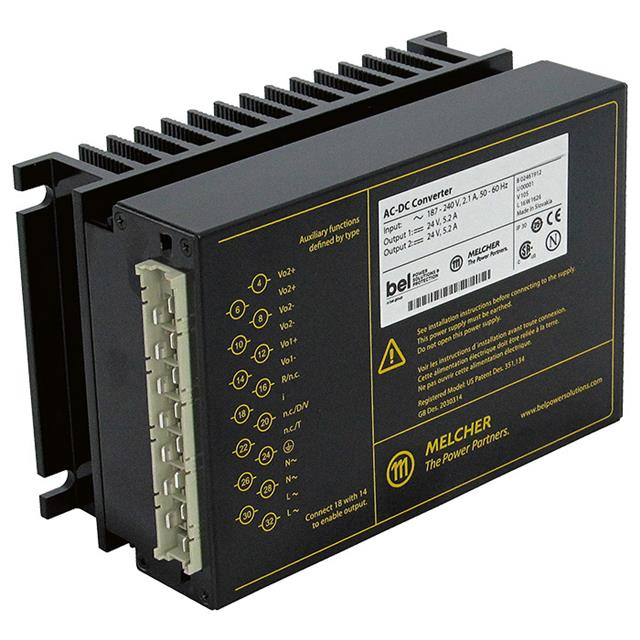

The Bel Power Solutions LKP5660-9ERG is an AC/DC converter designed for advanced electronic systems, offering a robust solution with dual 24V outputs and a total power capacity of 280W. It operates with a universal input voltage range of 187 to 255 VAC and boasts an efficiency of 87%.
Key electrical specifications include dual 5.2A outputs at 24V, providing flexibility for various applications. The converter features power factor correction (PFC) greater than 0.93 and complies with harmonics standards IEC/EN 61000-3-2. It also offers immunity according to IEC/EN 61000-4 standards.
Designed for reliability, the LKP5660-9ERG operates within a wide temperature range of -40°C to 71°C. Its mechanical dimensions are 168.0mm x 111.0mm x 80.0mm, making it suitable for chassis mounting. The unit is enclosed and conformal coated, enhancing its durability in demanding environments. Safety approvals include cCSAus, CE, and NEMKO, ensuring compliance with industry standards.
The LKP5660-9ERG has dual output voltages of 24V each.
The LKP5660-9ERG provides a maximum power output of 280W.
The input voltage range for this converter is 187 to 255 VAC.
The operating temperature range is -40°C to 71°C.
Key features include adjustable output, load sharing, PFC, remote on/off, and universal input.
This converter uses a chassis mount.
