| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,598 pcs
|
90598 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of LABs | |
| Number of Logic Elements | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Total RAM Bits | |
| Voltage |

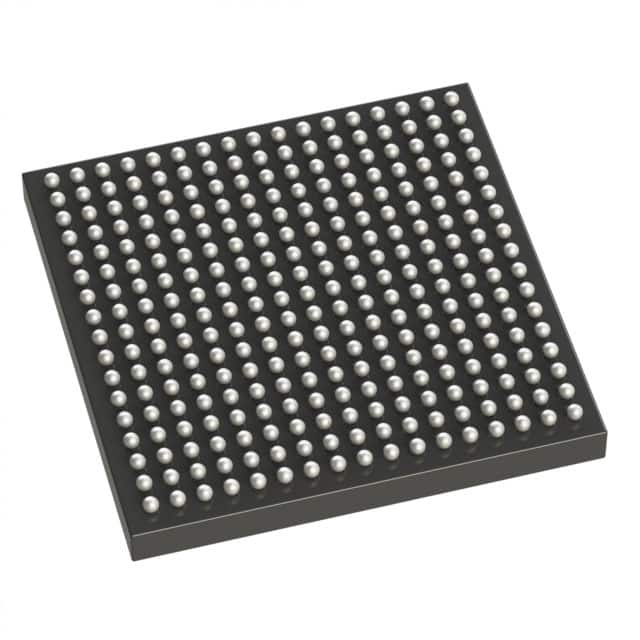

The Lattice Semiconductor LIFCL-40-9MG289I is a Field Programmable Gate Array (FPGA) designed for embedded applications. This device features 39,000 logic elements and 9,750 LABs, providing significant processing capability. It offers 180 I/O pins for flexible interfacing and has a total RAM bit count of 1,548,288.
The operating voltage for this FPGA ranges from 0.95V to 1.05V, making it suitable for low-power designs. The operating temperature range is -40°C to 100°C (TJ). The component is supplied in a 289-CSBGA package, with a supplier device package size of 9.5x9.5mm.
This FPGA is surface-mounted and designed for robust integration into electronic systems. Its specifications make it a candidate for various digital logic and processing tasks within embedded systems.
The LIFCL-40-9MG289I FPGA has 39,000 logic elements.
The LIFCL-40-9MG289I FPGA has 180 I/O pins.
The operating voltage range for the LIFCL-40-9MG289I FPGA is 0.95V to 1.05V.
The LIFCL-40-9MG289I FPGA is supplied in a 289-TFBGA, CSBGA package.
The operating temperature range for the LIFCL-40-9MG289I FPGA is -40°C to 100°C (TJ).
