| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

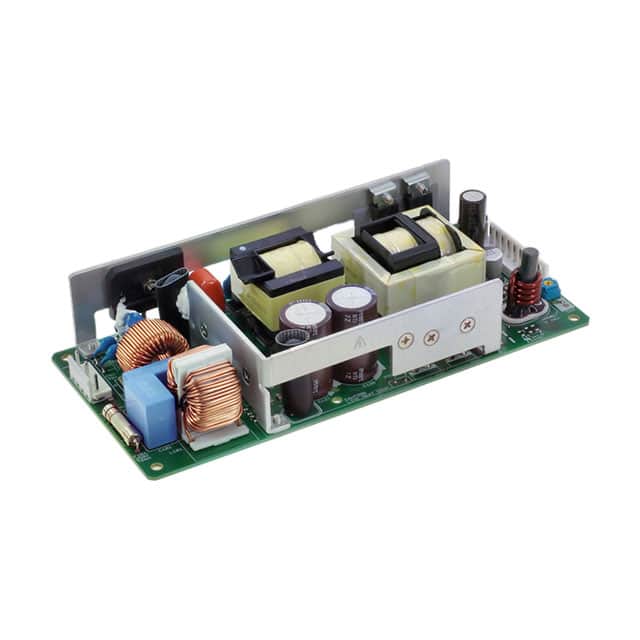

The Cosel LHA300F-12-Y is a high-performance AC/DC converter with a power rating of 300W and a single 12V output. Designed with an open frame construction, it is suitable for chassis mounting and features adjustable output and universal input capabilities. This converter operates efficiently with a rating of 91.5% and is built to withstand a wide operating temperature range from -10°C to 70°C, with derating applied.
Key specifications include a voltage rating of 3 kV and a current capacity of 25A. The unit complies with standard number 62368-1 and has received approvals from agencies such as CE, cURus, DEMKO, TUV, and UL, making it suitable for ITE (Commercial) applications. Its dimensions are 180.1mm in length, 84.1mm in width, and 33.5mm in height.
This model is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under recommended storage conditions. The REACH status is unaffected.
-10°C to 70°C with derating
91.5%
3 kV
25 A
Chassis mount
1
300W
