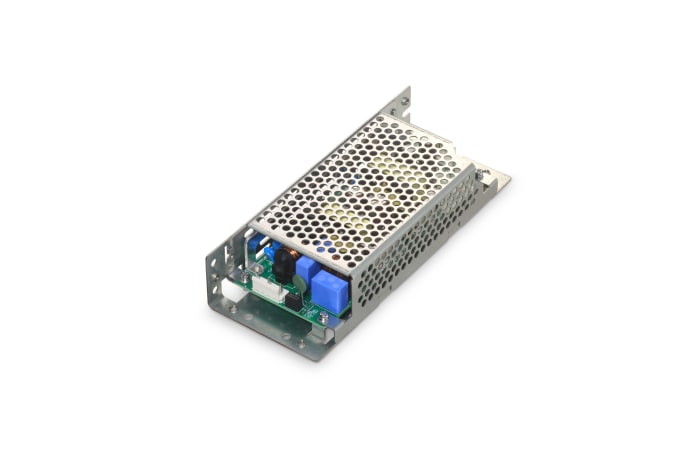

The Cosel LHA100F-36-SN is a compact, enclosed AC/DC power supply designed for reliable power conversion. It delivers a stable 36V dc output at 2.8A, providing a total power of 100.8W. This power supply is built with a low-profile PCB construction and features adjustable output, Power Factor Correction (PFC), and universal input capabilities, accepting AC input voltages from 85V to 264V.
Designed for ITE (Commercial) applications, the LHA100F-36-SN operates within a temperature range of -10°C to 70°C with derating. It meets various safety and performance standards, including CE, cURus, and DEMKO, and is compliant with standard 62368-1. The unit is chassis mounted, making it suitable for integration into various systems.
Key specifications include a maximum output voltage of 36V dc, a single output, and an efficiency of 84%. The dimensions are 173mm in length, 37.5mm in depth, and 72mm in width. It also provides 3kV voltage isolation and features over-current and over-voltage protection.
The input voltage range is 85 to 264 VAC.
Output is 36V dc at 2.8A, providing 101W of power.
The operating temperature range is -10°C to 70°C with derating.
It offers 84% efficiency at full load.
It is approved by CE, cURus, and DEMKO and complies with standard 62368-1.
Chassis mount, dimensions 184.9mm x 71.9mm x 37.6mm, weight 250g.
Yes, adjustable output and power factor correction (PFC) are included.
