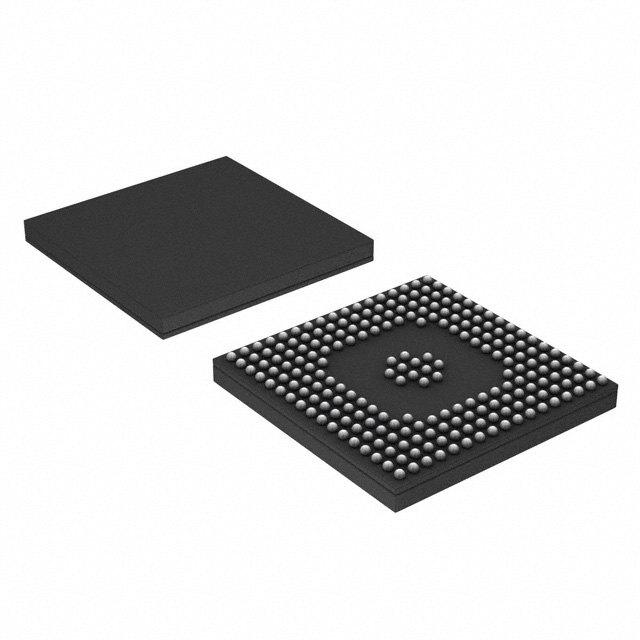

LH79524N0F100A1 The NXP Semiconductors LH79524N0F100A1 is a 32-bit microcontroller with an ARM7® core. It features 16KB RAM, 108 I/O pins, and operates at 76.2MHz.
Mfr Part #:

LH79524N0F100A1

Available from 1 distributors
Mfr Name: NXP Semiconductors
NXP Semiconductors
The NXP Semiconductors LH79524N0F100A1 is a 32-bit microcontroller with an ARM7® core. It features 16KB RAM, 108 I/O pins, and operates at 76.2MHz.
✓ Total Stock: 6,693 pcs

LH79524N0F100A1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
6,693 pcs
On Request
6693 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LH79524N0F100A1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
Lead Spacing
Mounting Type
Number of I
Operating Temperature
Oscillator Type
Peripherals
Program Memory Type
RAM Size
Speed
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

LH79524N0F100A1 Description

Short technical summary and product information.

The LH79524N0F100A1 from NXP Semiconductors is a high-performance 32-bit microcontroller based on the ARM7® core. This part of the BlueStreak series offers a clock speed of 76.2MHz and features a ROMless architecture for flexible programming.



Key specifications include 16KB of RAM, 108 I/O pins, and 10-bit A/D converters. It supports a wide range of connectivity options such as Ethernet, USB, I2C, and SPI. The operating voltage range is 1.7V to 1.9V, with an operating temperature range of -40°C to 85°C (TA).



Designed for surface mounting, the LH79524N0F100A1 comes in a 208-LFBGA package. Its robust processing capabilities and extensive connectivity make it suitable for applications in industrial automation, networking, consumer electronics, and automotive systems. Despite being marked as obsolete, it remains a reliable choice for legacy systems and specific embedded applications.

LH79524N0F100A1 Quick Information

Product Type: Microcontroller
Series: BlueStreak
Canonical Name: LH79524N0F100A1 32-Bit Microcontroller
Subcategory: 32-Bit

LH79524N0F100A1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LH79524N0F100A1 Features

  • 32-bit ARM720T™ RISC core processor.
  • Operates at a speed of 76.205 MHz.
  • Features 16K x 8 bytes of RAM.
  • Provides 108 I/O pins for extensive connectivity.
  • Packaged in a 208-LFBGA for surface mounting.

LH79524N0F100A1 Applications

  • Ideal for industrial automation control.
  • Suitable for embedded networking systems.
  • Used in consumer electronics devices.
  • Supports automotive control units.

LH79524N0F100A1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the core processor of the LH79524N0F100A1?

The core processor is ARM720T™ RISC.

What is the clock speed of the LH79524N0F100A1 microcontroller?

The clock speed is 76.205 MHz.

How much RAM does the LH79524N0F100A1 have?

It has 16K x 8 bytes of RAM.

What is the operating voltage range for this microcontroller?

The operating voltage is 1.7V to 1.9V.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C (TA).

What package type is the LH79524N0F100A1 supplied in?

It is supplied in a 208-LFBGA package.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is Level 3 (168 Hours).
