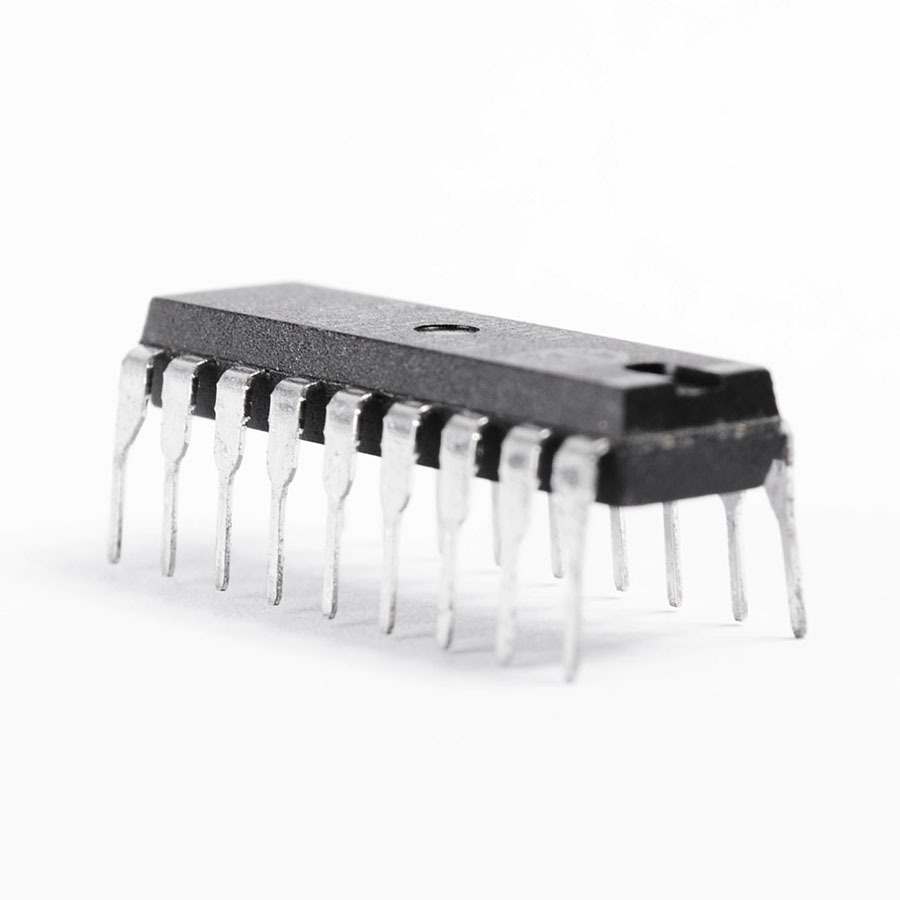

LH5114-4 The Sharp Microelectronics LH5114-4 is a CMOS integrated circuit memory component. It operates at a nominal supply voltage of 5.0V and features a 4-bit word configuration.
Mfr Part #:

LH5114-4

Available from 1 distributors
Mfr Name: Sharp Microelectronics
Sharp Microelectronics
The Sharp Microelectronics LH5114-4 is a CMOS integrated circuit memory component. It operates at a nominal supply voltage of 5.0V and features a 4-bit word configuration.
✓ Total Stock: 66 pcs
$ Price Range: $1.28

LH5114-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
66 pcs
On Request
66 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LH5114-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Output Configuration
Power Dissipation (Max)
SVHC Present
Technology
Weight
View Similar Products (0)

LH5114-4 Description

Short technical summary and product information.

The LH5114-4 from Sharp Microelectronics is a CMOS integrated circuit designed for memory applications. This component has a 4-bit word width and operates with a nominal supply voltage of 5.0V. It offers an access time of 450ns and a write cycle time of 450ns.



The device is housed in a DIP18 package and is not surface mounted. Its operating temperature range is from 0°C to 70°C. The maximum power dissipation is rated at 85mW. This integrated circuit is suitable for various electronic designs requiring memory storage with specific electrical characteristics.



Key specifications include a 1k number of words, 3-state output configuration, and a weight of 0.01 kg. The LH5114-4 is designed for applications within its specified operating conditions.

LH5114-4 Quick Information

Product Type: Integrated Circuit
Canonical Name: LH5114-4 Integrated Circuit
Subcategory: Memory

LH5114-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LH5114-4 Estimated Pricing

Qty Low High
1+ $1.28 $1.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

LH5114-4 Features

  • CMOS integrated circuit memory component.
  • 4-bit word configuration.
  • 5.0V nominal supply voltage.
  • 450ns maximum access time.
  • DIP18 through-hole package.

LH5114-4 Applications

  • Ideal for microprocessor memory systems.
  • Used in industrial control applications.
  • Suitable for battery-backed memory.
  • Applicable for low-speed data storage.

LH5114-4 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the supply voltage for the LH5114-4?

The nominal supply voltage is 5.0V.

What is the package type of the LH5114-4?

The LH5114-4 is packaged in a DIP18 (18-pin DIP) package.

What is the operating temperature range?

0°C to 70°C.

What is the memory organization?

1024 words by 4 bits.

What is the output configuration?

3-state outputs.
