| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
497 pcs
|
497 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Configuration | |
| Current | |
| Current - Test | |
| Failure Rate | |
| Height (Max) | |
| Lens Color | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Millicandela Rating | |
| Mounting Type | |
| Size / Dimension | |
| Supplier Device Package | |
| Viewing Angle | |
| Voltage | |
| Voltage - Forward (Vf) | |
| Wavelength | |
| Wavelength - Dominant | |
| Wavelength - Peak |

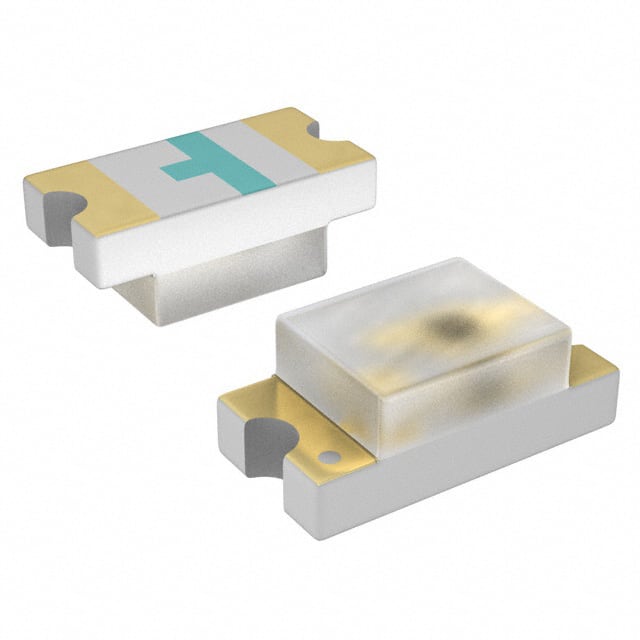

This ams OSRAM LH R974-LP-1-0-20-R18 is a discrete red LED designed for indication purposes. It features a standard configuration with a diffused rectangle lens and a white lens color.
The LED operates with a typical forward voltage of 1.8V and a test current of 20mA, producing a luminous intensity of 41mcd. Its dominant wavelength is 645nm, with a peak wavelength of 660nm. The viewing angle is wide at 160 degrees.
Packaged in an 0805 (2012 Metric) case, this component is designed for surface mounting. Its dimensions are 2.00mm in length by 1.25mm in width, with a maximum height of 0.90mm. The lens measures 1.30mm x 1.25mm.
Compliance information indicates it is RoHS3 compliant, REACH unaffected, and has a Moisture Sensitivity Level (MSL) of 2 (1 Year). The series is CHIPLED 0805.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage is 1.8V.
The peak wavelength is 660nm.
The luminous intensity rating is 41mcd.
The viewing angle is 160 degrees.
It is supplied in an 0805 (2012 Metric) package suitable for surface mounting.
Yes, it is ROHS3 Compliant.
