| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
268 pcs
|
268 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

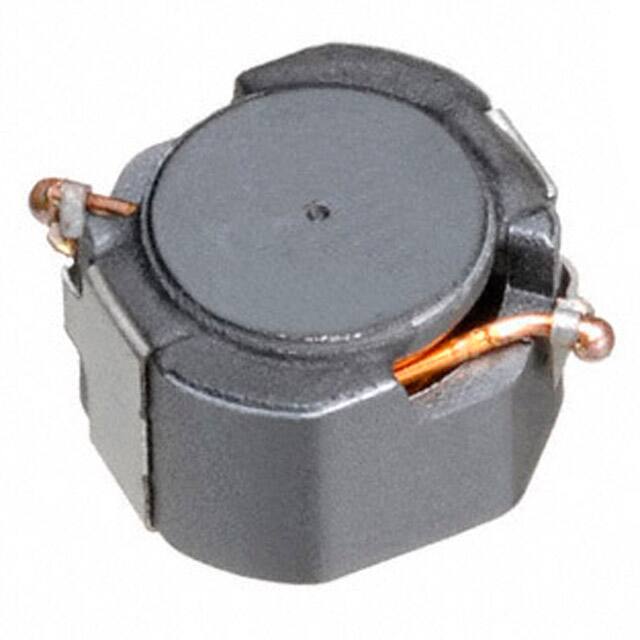

This TDK Corporation LGJ7045TC-331M-H is a fixed inductor from the CLF-D series. It is a shielded, wirewound drum core type with a ferrite material core. The inductance is rated at 330µH with a tolerance of ±20%.
The component has a current rating of 420mA and a saturation current of 490mA. The DC resistance is a maximum of 1.03 Ohms. It operates within a temperature range of -40°C to 125°C and is AEC-Q200 qualified.
Designed for surface mounting, this inductor comes in a nonstandard package size. Its dimensions are 7.20mm in length, 6.90mm in width, and 4.50mm in height. It is supplied on tape and reel.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status. This inductor is suitable for applications requiring reliable inductance and current handling in a compact surface-mount form factor.
The inductance is 330µH with a tolerance of ±20%.
The rated current is 420mA.
The maximum DC resistance is 1.03 Ohms.
The operating temperature range is -40°C to 125°C.
This inductor is designed for surface mounting.
It is a shielded, wirewound drum core inductor.
