LGA75A-5-C
Cosel
The Cosel LGA75A-5-C is an open frame AC/DC converter providing a 5V output at up to 15A. It features a chassis mount design and is suitable for ITE commercial applications.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

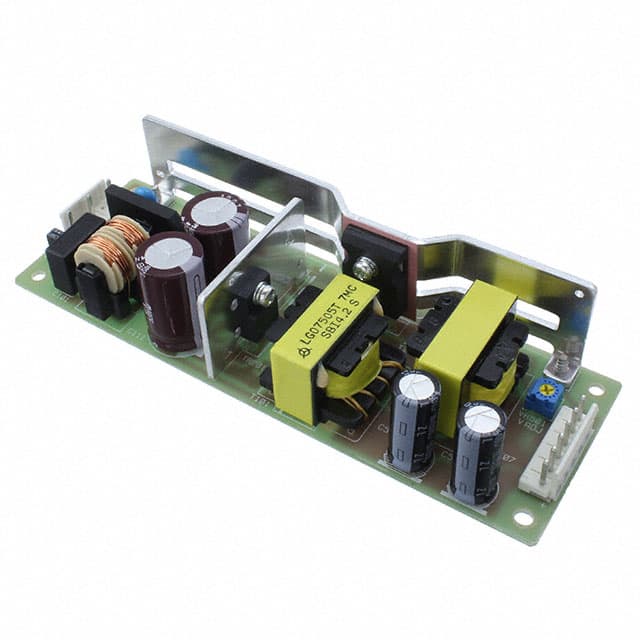

The Cosel LGA75A-5-Y is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 15A, providing a total power of 75W. The converter operates with an efficiency of 79% and features built-in overcurrent and overvoltage protection circuits.
This unit is designed for chassis mounting and has dimensions of 150.1mm x 50.0mm x 34.5mm. It meets various safety agency approvals including CE, cURus, and TUV, and complies with relevant EMI standards. The operating temperature range is from -10°C to 60°C, making it suitable for a variety of industrial environments.
Key electrical specifications include an input voltage range of 85-132 VAC, an isolation voltage of 2 kV, and a typical hold-up time of 20ms. The output voltage adjustment range is 4.90-5.30V.
The output voltage is 5 VDC nominal, with a maximum output current of 15 A.
The input voltage range is 85-132 VAC.
The operating temperature range is -10°C to 60°C.
Typical efficiency is 79%.
The isolation voltage is 2 kV.
The package is open frame, designed for chassis mount installation.
