| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

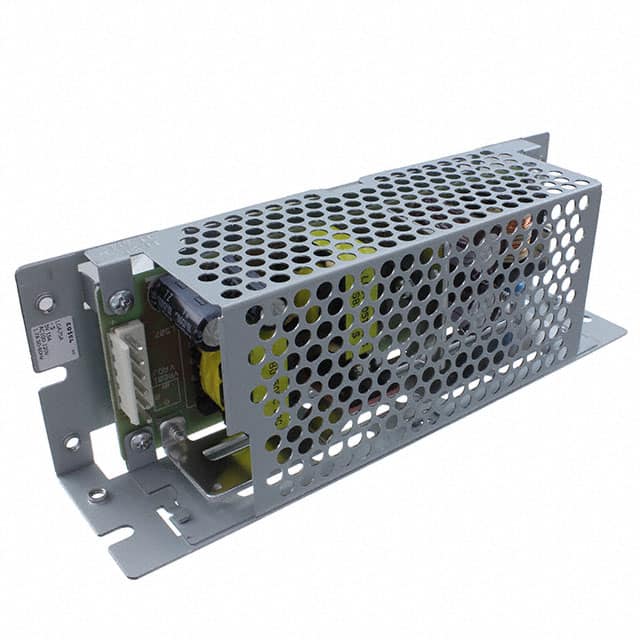

The Cosel LGA75A-5-SN is a versatile AC to DC power supply designed for industrial and commercial applications. This enclosed unit offers a stable 5V output with a maximum current of 10A, delivering a total output power of 50W. It boasts a typical efficiency of 79% and features robust protection mechanisms including overcurrent and overvoltage protection.
The converter is designed for easy integration with a chassis mount type, facilitating secure installation in various systems. Its compact dimensions of 150.1mm x 50.0mm x 34.5mm make it suitable for space-constrained environments. The LGA75A-5-SN operates within an ambient temperature range of -10°C to 60°C, ensuring reliable performance across different conditions.
Safety and compliance are key features, with approvals from CE, cURus, and TUV. It also meets stringent EMI standards, including FCC-B and CISPR22-B, and EMS compliance according to EN61000 series. The unit provides 2000 VAC isolation between input and output, enhancing system safety.
The output voltage is 5V.
The maximum output current is 10A.
The typical efficiency is 79%.
It operates between -10°C and 60°C.
It is a chassis mount type.
It is approved by CE, cURus, and TUV.
Yes, it works over 105% of rating and recovers automatically.
