| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage |

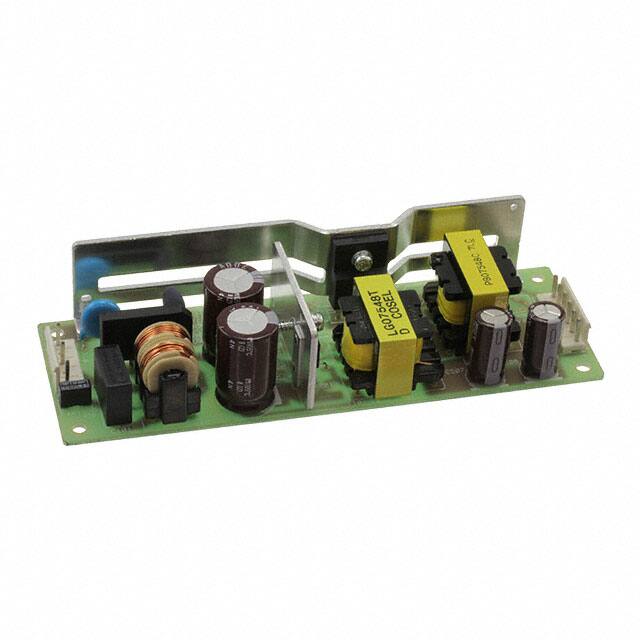

The Cosel LGA75A-48 is an open frame AC/DC power supply converter designed for ITE (Commercial) applications. It provides a stable 48V DC output with a maximum current of 1.6A, delivering a total power of 76.8W. The unit features an efficiency of 86% and operates within a wide input voltage range of 100-240 VAC.
This converter is suitable for chassis mounting and includes built-in overcurrent and overvoltage protection circuits. It meets various safety agency approvals including CE, cURus, and TUV, and complies with EMI standards such as FCC-B and CISPR22-B. The operating temperature range is -10°C to 60°C.
Key electrical specifications include line regulation of 192mV maximum, load regulation of 300mV maximum, and ripple/noise of 150mVp-p. The isolation voltage between input and output is 2000V. The physical dimensions are 150.1mm in length, 50.0mm in width, and 34.5mm in height.
48V DC
-10°C to 60°C
Chassis mount, open frame
100-240 VAC
Yes, overcurrent protection activates over 105% of the rating and recovers automatically.
CE, cURus, TUV
