| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| SVHC Present | |
| Type | |
| Voltage |

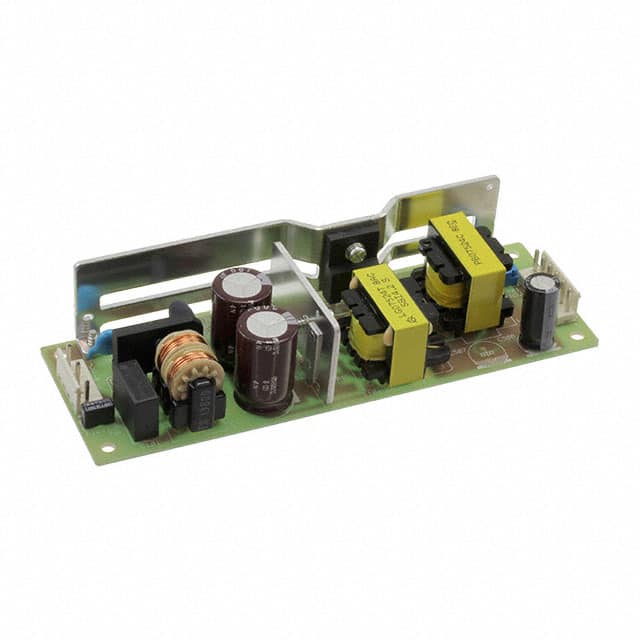

The Cosel LGA75A-24-Y is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a stable 24V output with a maximum current of 3.2A, delivering a total power of up to 75W.
This converter operates with an input voltage range of 85-264 VAC and a frequency of 47-63 Hz, boasting an efficiency of 86% at full load. Key electrical specifications include a line regulation of 96mV maximum and a load regulation of 150mV maximum. It also features built-in overcurrent and overvoltage protection circuits.
With a compact size of 150.1mm x 50.0mm x 34.5mm, the LGA75A-24-Y is suitable for chassis mounting. It is designed to operate reliably in temperatures ranging from -10°C to 60°C. Safety agency approvals include CE, cURus, and TUV, ensuring compliance for various industrial and commercial applications.
24V DC.
It is a chassis mount open frame converter with dimensions 150.1mm x 50.0mm x 34.5mm.
-10°C to 60°C.
85-264 VAC with a frequency of 47-63 Hz.
86% at full load.
Yes, it operates above 105% of rating and recovers automatically.
2000 VAC between input and output for 1 minute.
