| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

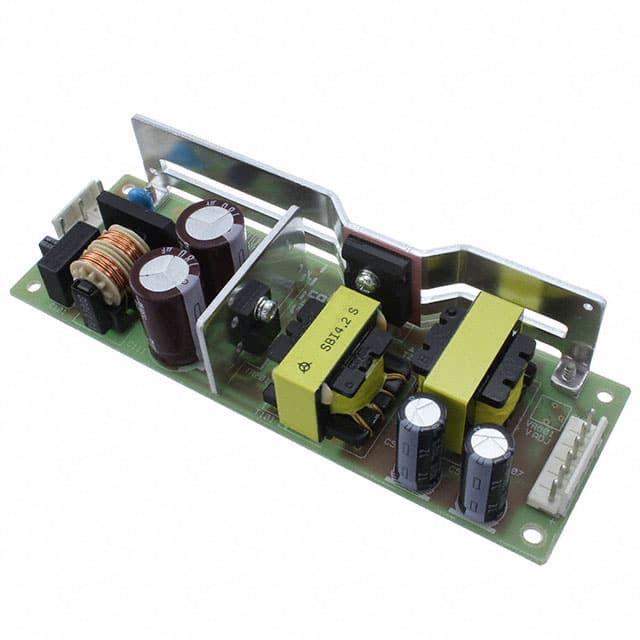

The Cosel LGA75A-24 is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 24V DC output with a maximum current of 2.5A, delivering up to 60W of power.
This converter features a chassis mount design and operates with an input voltage range of 85-132V AC. Key electrical specifications include a typical efficiency of 86%, line regulation of 96mV (max), and load regulation of 150mV (max). It also incorporates built-in overcurrent and overvoltage protection circuits for enhanced reliability.
With dimensions of 150.1mm x 50.0mm x 34.5mm, the LGA75A-24 is suitable for integration into various systems. It meets safety agency approvals including CE, cURus, and TUV, and complies with relevant EMI and EMS standards.
85-132V AC.
24V DC.
2.5A.
85% at full load.
-10°C to 60°C with derating.
Chassis mount.
UL60950-1, CSA60950-1, and EN62368-1.
