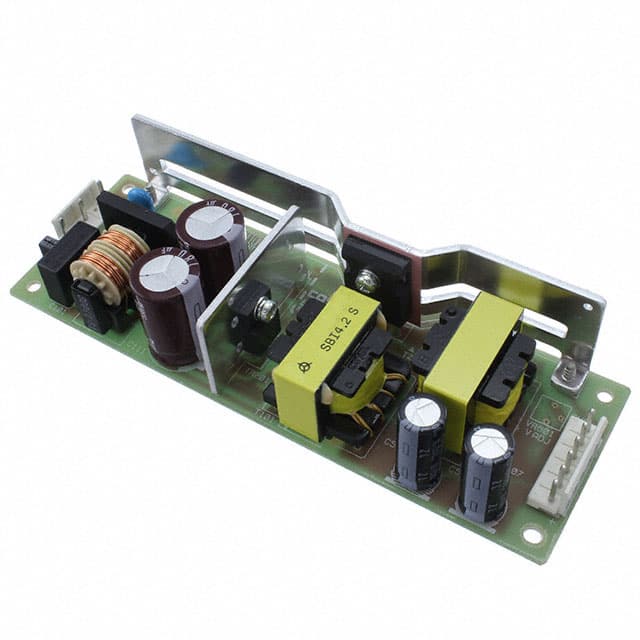

The Cosel LGA75A-15 is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It provides a single output of 15V at 5A, delivering a total of 75W of power.
The converter accepts a universal input voltage range of 85 to 264 VAC. It is designed for chassis mounting and features a compact size with dimensions of 150.1mm x 50.0mm x 34.5mm.
Key electrical specifications include an efficiency of up to 90% and an isolation voltage of 3 kV. The operating temperature range is -10°C to 60°C, with derating available up to 80°C. Built-in protection circuits for inrush current, overcurrent, and overvoltage are included for reliability.
The output voltage is 15V.
The output current is 5A.
The maximum output power is 75W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -10°C to 60°C.
It uses chassis mount.
The dimensions are 150.1mm x 50.0mm x 34.5mm.
