| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Package / Case | |
| Type | |
| Voltage | |
| Width |

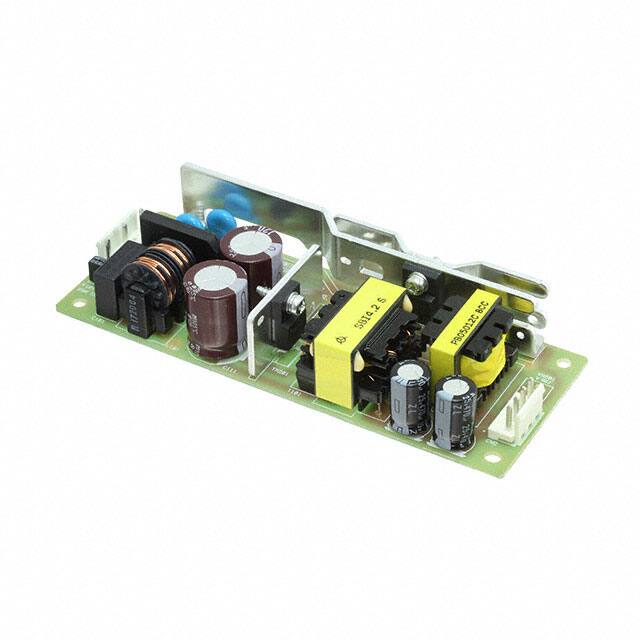

The Cosel LGA50A-5 is an open-frame AC DC converter designed for ITE (Commercial) applications. It delivers a stable 5V output with a maximum current of 10A, providing a total output power of 50W. This unit operates with an efficiency of 79% and features built-in overcurrent and overvoltage protection circuits.
The converter has an input voltage range of 85-132 VAC and an input frequency range of 47-440 Hz. It is designed for chassis mounting and has dimensions of 132.1mm in length, 50.0mm in width, and 28.4mm in height. The operating temperature range is -10°C to 60°C, with an alternative specification of -40°C to 70°C with derating.
Safety agency approvals include CE, cURus, and TUV. The LGA50A-5 also complies with various EMI standards and features a 2 kV isolation voltage between input and output.
The output voltage of the Cosel LGA50A-5 is 5V.
The maximum output current for the LGA50A-5 is 10A.
The total output power of the LGA50A-5 is 50W.
The input voltage range for the LGA50A-5 is 85-132 VAC.
The typical efficiency of the LGA50A-5 is 79%.
The operating temperature range for the LGA50A-5 is -10°C to 60°C.
The dimensions of the LGA50A-5 are 132.1mm x 50.0mm x 28.4mm.
