| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

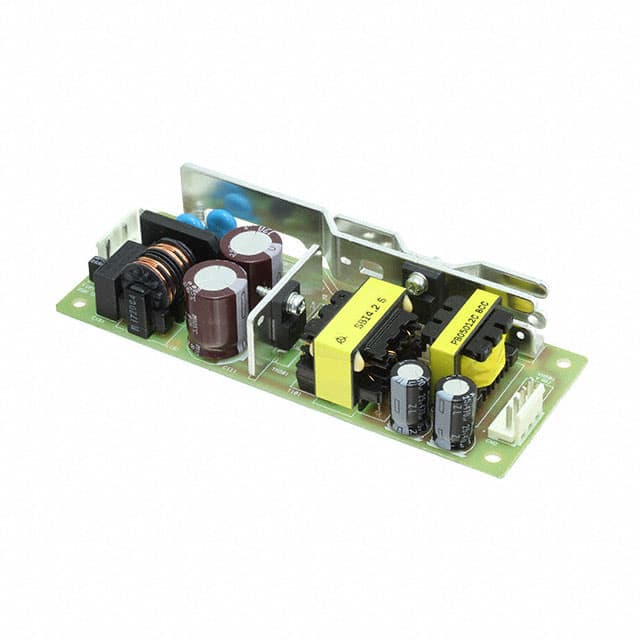

The Cosel LGA50A-48 is an open frame AC DC converter designed for ITE (Commercial) applications. It features a compact PCB construction and chassis mount type.
This converter operates with an input voltage range of 85 to 132 VAC and delivers a stable 48V DC output at a maximum current of 1.3A, with a maximum output wattage of 62.4W. It boasts an efficiency of 85% at full load.
Key electrical specifications include a typical start-up time of 200ms and a hold-up time of 20ms. The unit incorporates built-in overcurrent and overvoltage protection circuits. Safety agency approvals include CE, cURus, and TUV, with compliance to standards such as UL60950-1 and EN62368-1. EMI compliance covers FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
The operating temperature range is -10°C to 60°C. The dimensions are 132.1mm x 50.0mm x 28.4mm.
85 to 132 VAC
48 VDC at up to 1.3 A
Chassis Mount
-10°C to 60°C
85% typical at full load
Overcurrent protection (works over 105% of rating) and overvoltage protection (4.00-5.25 V)
132.1 mm x 50.0 mm x 28.4 mm
