| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

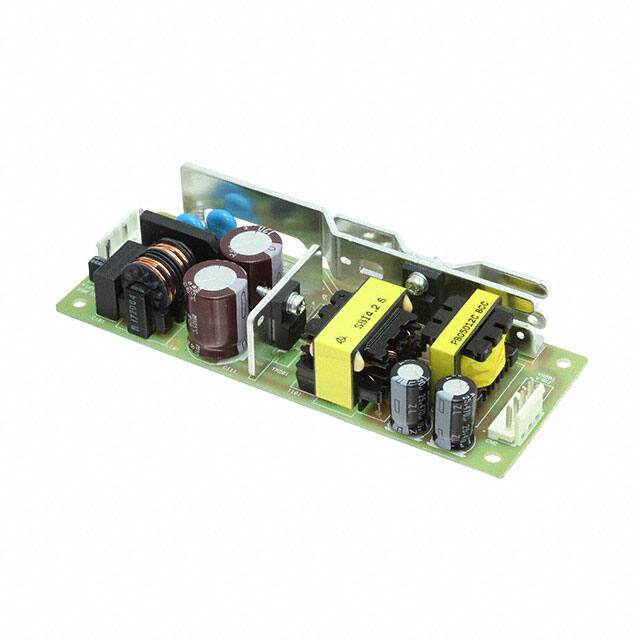

The Cosel LGA50A-24-Y is a single-output AC-DC power supply designed for ITE (Commercial) applications. This open-frame unit offers a stable 24V output with a maximum current of 2.5A, delivering up to 60W of power.
Key electrical specifications include an input voltage range of 85-132 VAC and an efficiency rating of 85.0% at full load. It incorporates built-in overcurrent and overvoltage protection circuits for enhanced reliability. The unit operates within a temperature range of -10°C to 60°C.
With its compact dimensions of 132.1mm x 50.0mm x 28.4mm, the LGA50A-24-Y is suitable for chassis mounting. It meets various safety agency approvals including CE, cURus, and TUV, and complies with EMI standards such as FCC-B and CISPR22-B.
This power supply is designed for cost-effectiveness and rugged performance, making it a reliable choice for various electronic equipment requiring a dependable DC power source.
The output voltage is 24V.
The maximum output current is 2.5A.
The maximum output power is 60W.
The input voltage range is 85-132 VAC.
The efficiency is typically 85.0% at full load.
The operating temperature range is -10°C to 60°C.
It has CE, cURus, and TUV approvals.
