| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

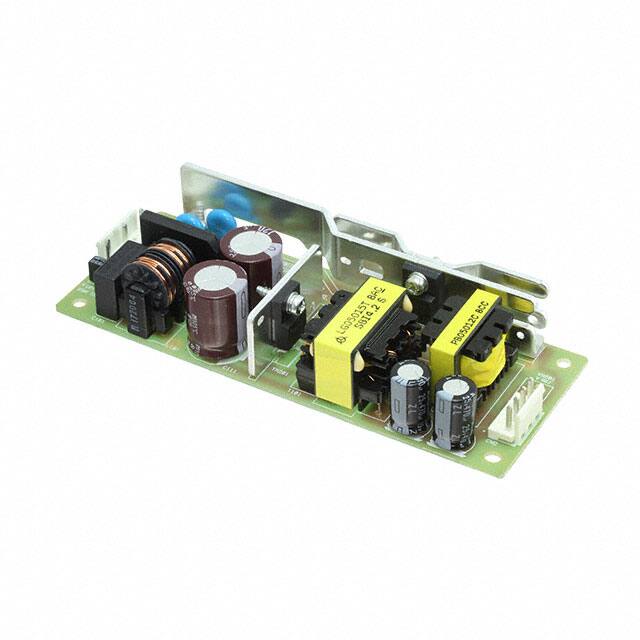

The Cosel LGA50A-15 is an AC/DC power supply in an open frame configuration, designed for chassis mounting. It provides a stable 15V DC output with a maximum current of 3.5A, delivering a total maximum output wattage of 52.5W. The unit operates within an input voltage range of 85-132 VAC and a frequency range of 47-440 Hz.
Key electrical specifications include a typical efficiency of 83% at full load, line regulation of 60mV maximum, and load regulation of 120mV maximum. Ripple and noise are specified at 120mVp-p maximum under typical operating conditions. The operating temperature range is -10°C to 60°C.
Safety features include an isolation voltage of 2000 VAC between input and output. The compact dimensions of 132.1mm x 50.0mm x 28.4mm make it suitable for integration into various systems where space is a consideration.
15V.
3.5A.
85-132 VAC.
-10°C to 60°C.
Open frame, chassis mount.
2000 VAC between input and output.
83% typical at full load.
