| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

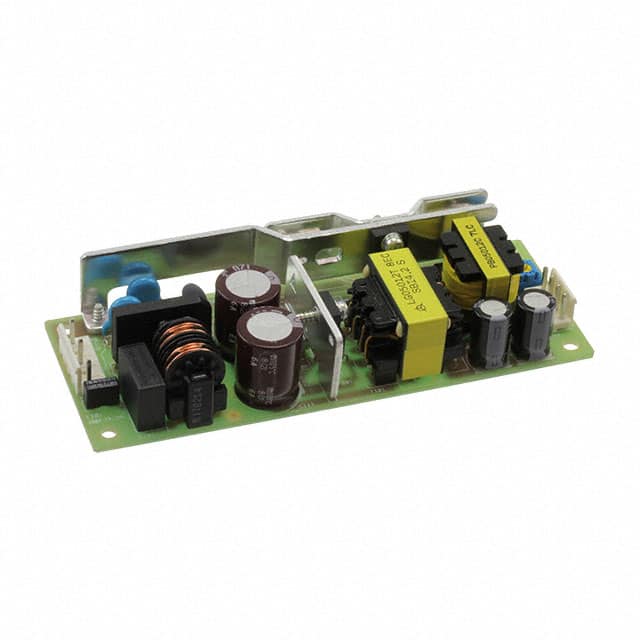

The Cosel LGA50A-12-Y is an open-frame AC/DC power supply designed for ITE (Commercial) applications. It delivers a stable 12V output with a maximum current of 4.3A, providing a total output wattage of 51.6W. The unit boasts an efficiency of 82.0% at full load.
This power supply features built-in inrush current, overcurrent, and overvoltage protection circuits for enhanced reliability. It meets various safety agency approvals including CE, cURus, and TUV, and complies with EMI standards such as FCC-B and CISPR22-B. The operating temperature range is -10°C to 60°C.
With its compact dimensions of 132.1mm x 50.0mm x 28.4mm, the LGA50A-12-Y is suitable for chassis mounting. It offers robust performance with features like low leakage current and good line and load regulation, making it a reliable choice for various electronic systems.
The output voltage is 12V.
The maximum output current is 4.3A.
The maximum output wattage is 51.6W.
The input voltage range is 85-132 VAC.
The efficiency is 82.0% at Io=100%.
The operating temperature range is -10°C to 60°C.
It has CE, cURus, and TUV approvals.
