| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Package / Case | |
| Type | |
| Voltage | |
| Width |

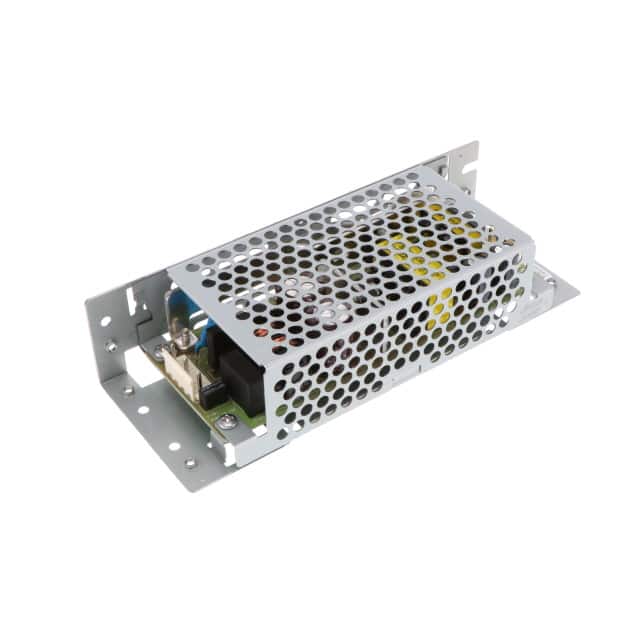

The Cosel LGA50A-12-SN is an AC/DC converter designed for ITE (Commercial) applications. It features an enclosed type with a chassis mount for easy integration into systems.
This converter delivers a stable 12V output with a current rating of 4.3A, providing a total output power of 51.6W. It operates with an input voltage range of 85 to 264 VAC and boasts a typical efficiency of 82.0% at full load. The unit includes built-in protection circuits for inrush current, overcurrent, and overvoltage.
Key electrical specifications include a line regulation of 48mV maximum and a load regulation of 100mV maximum. The ripple noise is rated at a maximum of 150mVp-p at 25°C. It offers an isolation voltage of 2000V between input and output.
With dimensions of 132.1mm x 50.0mm x 28.4mm, this compact power supply is suitable for various electronic equipment. It operates within a temperature range of -10°C to 60°C.
The output voltage is 12V.
The maximum output current is 4.3A.
The maximum output power is 51.6W.
The input voltage range is 85 to 264 VAC.
The efficiency is 82.0% typical at full load.
The operating temperature range is -10°C to 60°C.
It is designed for chassis mount installation.
