| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Power | |
| Type | |
| Voltage |

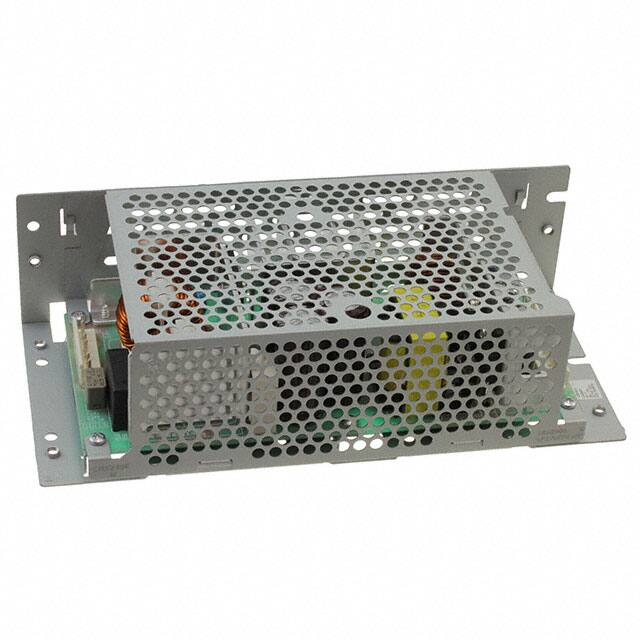

The Cosel LGA240A-24-SNY is a robust AC/DC power supply designed for ITE (Commercial) applications. This enclosed unit features a chassis mount for easy integration into systems.
Key electrical specifications include a 24V output voltage and a maximum output current of 10A, providing a total output power of 240W. The converter operates with an input voltage range of 85-264 VAC and offers a typical efficiency of 86.5% at full load. It includes built-in overcurrent and overvoltage protection circuits for enhanced reliability.
The unit is designed for a wide operating temperature range of -10°C to 60°C. Its dimensions are 180.1mm in length, 84.1mm in width, and 48.5mm in height, making it suitable for various installation environments. Safety agency approvals include CE, cURus, and TUV, ensuring compliance with international standards.
The LGA240A-24-SNY has an output voltage of 24V and a maximum output current of 10A.
The maximum output power for the LGA240A-24-SNY is 240W.
The operating temperature range for the LGA240A-24-SNY is -10°C to 60°C.
The LGA240A-24-SNY uses chassis mount.
The dimensions are 180.1mm in length, 84.1mm in width, and 48.5mm in height.
Yes, the LGA240A-24-SNY includes built-in overcurrent protection (OCP) and overvoltage protection (OVP) circuits.
