LGA150A-24-SNJ1Y
Cosel

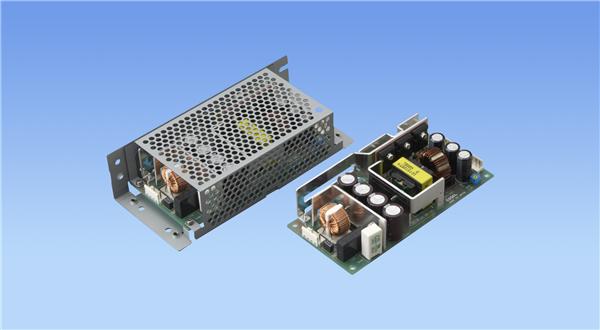

The Cosel LGA150A-24-SNJ1Y is an enclosed AC/DC converter providing a 24V output at 6.3A. It features a chassis mount design and operates with 87% efficiency.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Type | |
| Voltage |
The Cosel LGA150A-24-SNJ1 is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a stable 24V DC output with a maximum current of 6.3A, delivering up to 150W of power.
This converter boasts an efficiency of 87% and features robust electrical specifications including an input voltage range of 85-132 VAC and an isolation voltage of 2 kV. It is built with overcurrent and overvoltage protection circuits for enhanced reliability.
The unit is designed for chassis mounting, making it suitable for integration into various systems. Its operating temperature range is -10°C to 60°C, and it complies with safety agency approvals such as CE, cURus, and TUV.
Key features include built-in protection circuits, compact PCB construction, and compliance with various EMI standards. The LGA150A-24-SNJ1 is a cost-effective and rugged power solution for demanding applications.
The output voltage is 24 VDC.
The maximum output current is 6.3 A.
The maximum output wattage is 150 W.
The operating temperature range is -10°C to 60°C.
The dimensions are 160.0mm L x 74.9mm W x 39.1mm H.
Yes, it works over 105% of rating and recovers automatically.
The RoHS status is RoHS3 Compliant.
