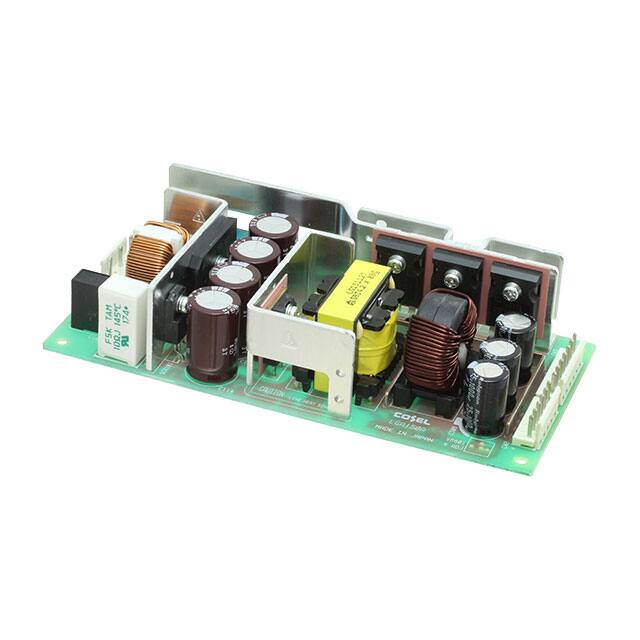

The Cosel LGA150A-24 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 24V DC output with a maximum current of 6.3A, supporting up to 150W of power.
This converter features an efficiency rating of 87% and an input voltage range of 85-132 VAC. It provides 2 kV of isolation voltage, ensuring safety in operation. The operating temperature range is from -10°C to 60°C.
Designed for chassis mounting, the LGA150A-24 has dimensions of 160.0mm x 74.9mm x 39.1mm. It holds approvals from CE, cURus, and TUV, making it suitable for various commercial and industrial applications requiring reliable power conversion.
The output voltage is 24 VDC.
The maximum output current is 6.3 A.
The input voltage range is 85-132 VAC.
The operating temperature range is -10°C to 60°C.
It is designed for chassis mount installation.
The dimensions are 160.0mm x 74.9mm x 39.1mm.
