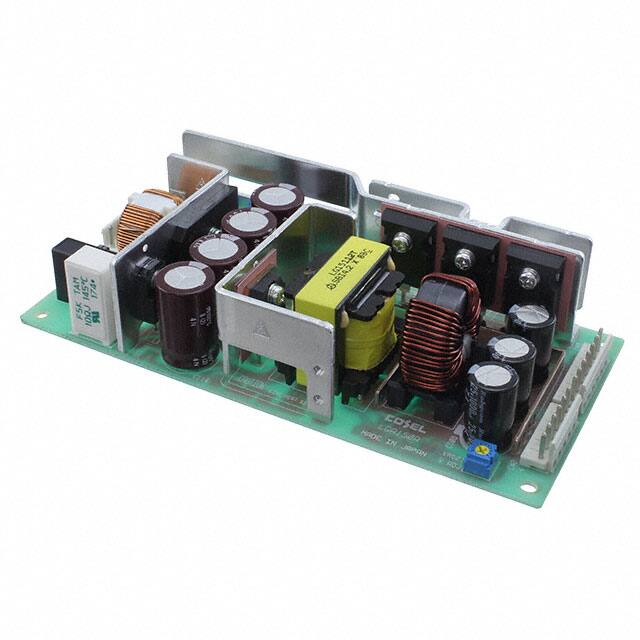

The Cosel LGA150A-12-Y is an open frame AC/DC converter designed for commercial ITE applications. It delivers a stable 12V output with a maximum current of 12.5A, boasting an efficiency of 84.5%.
This converter features a compact chassis mount design, making it suitable for integration into various systems. Key electrical specifications include an input voltage range of 85-132 VAC, line regulation of 48mV maximum, and load regulation of 100mV maximum. It also offers built-in overcurrent and overvoltage protection circuits for enhanced reliability.
With safety agency approvals including CE, cURus, and TUV, the LGA150A-12-Y meets stringent industry standards. Its operating temperature range is -10°C to 60°C, and it provides 2kV isolation between input and output.
This model is part of the LGA series from Cosel, known for its cost-effectiveness and rugged PCB construction. It is suitable for applications requiring a reliable and efficient power conversion solution.
The output voltage is 12V nominal.
The output current is 12.5A.
84.5% typical efficiency at full load.
The operating temperature range is -10C to 60C.
The dimensions are 160.0mm x 74.9mm x 39.1mm (L x W x H).
Chassis mount is supported.
Overcurrent protection (works over 105% of rating) and overvoltage protection (4.00-5.25V).
