| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

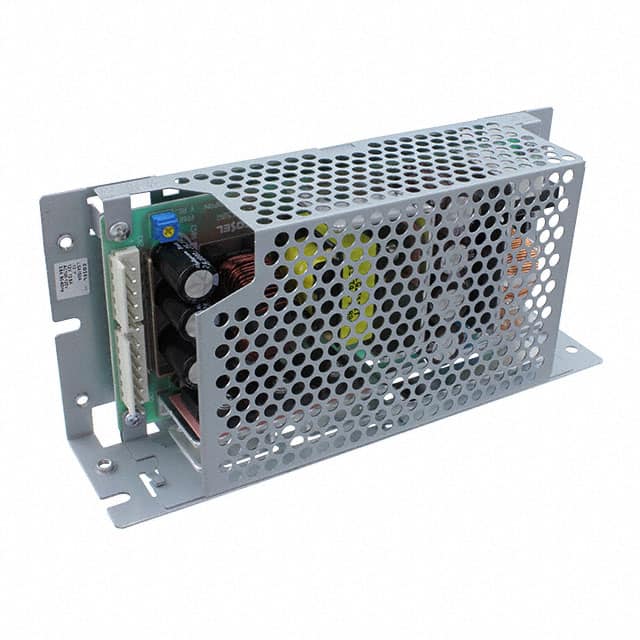

The Cosel LGA150A-12-SNY is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 12V output with a maximum current of 12.5A, delivering up to 150W of power.
Key electrical specifications include a typical efficiency of 84.5% and an input voltage range of 85-264V AC at 47-63Hz. The unit incorporates built-in overcurrent and overvoltage protection circuits. It operates within a temperature range of -10°C to 60°C.
This converter features a chassis mount type and has dimensions of 160.0mm x 74.9mm x 39.1mm. Safety agency approvals include CE, cURus, and TUV, with an isolation voltage of 2000V AC between input and output.
The output voltage is 12V.
The maximum output current is 12.5A.
The maximum output wattage is 150W.
The typical efficiency is 84.5%.
The operating temperature range is -10°C to 60°C.
The dimensions are 160.0mm x 74.9mm x 39.1mm.
It has CE, cURus, and TUV approvals.
