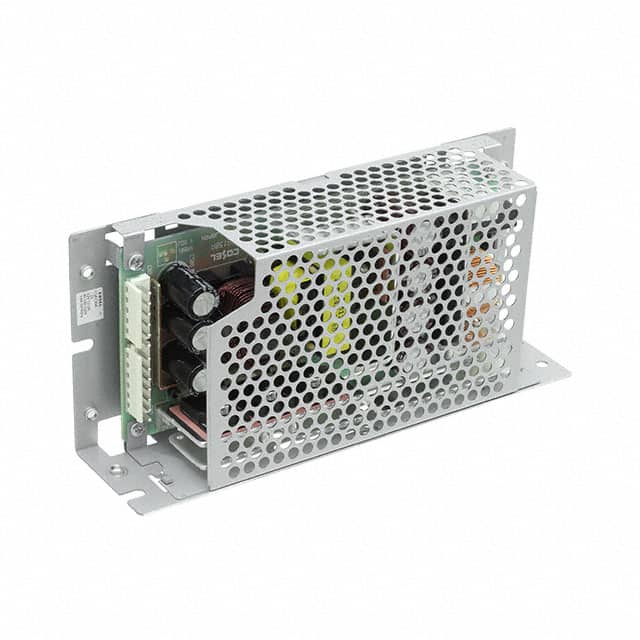

The Cosel LGA150A-12-SN is a robust AC/DC power supply designed for ITE (Commercial) applications. This enclosed unit features a chassis mount for secure installation.
Key electrical specifications include a 12V output voltage and a maximum output wattage of 150W. It operates with an input voltage range of 85-264 VAC and offers a typical efficiency of 84.5% at full load. The converter includes built-in protection circuits for inrush current, overcurrent, and overvoltage.
With dimensions of 160.0mm x 74.9mm x 39.1mm, the LGA150A-12-SN is designed for integration into various systems. It operates within a temperature range of -10°C to 60°C and provides an isolation voltage of 2000 VAC between input and output.
Safety agency approvals include CE, cURus, and TUV, ensuring compliance with international standards. The unit also complies with RoHS3 regulations.
The output voltage is 12V.
The maximum output current is 12.5A.
The maximum output wattage is 150W.
The typical efficiency is 84.5%.
The operating temperature range is -10°C to 60°C.
The dimensions are 160.0mm x 74.9mm x 39.1mm.
It has CE, cURus, and TUV approvals.
