| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

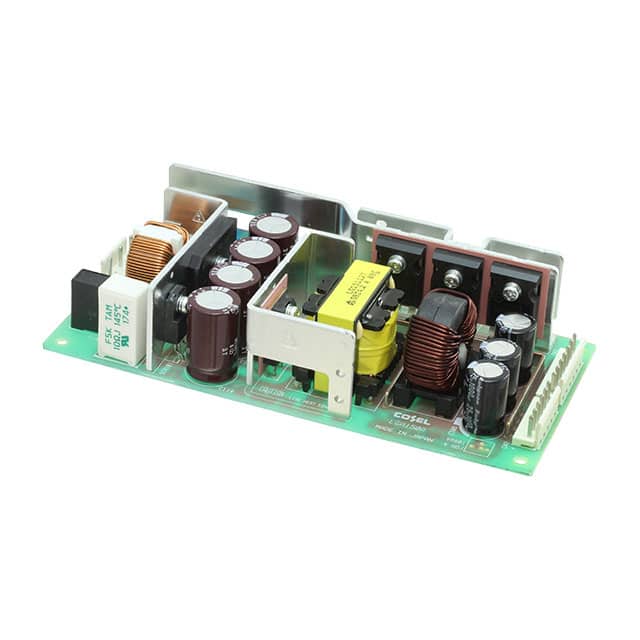

The Cosel LGA150A-12 is a versatile open frame AC DC power supply converter. It operates with an input voltage range of 85 to 132 VAC and delivers a stable 12V DC output at a maximum current of 12.5A, providing a total output power of 150W. This unit boasts a high efficiency of 84.5% at full load, contributing to energy savings and reduced heat generation.
Designed for ease of integration, the LGA150A-12 features a chassis mount type and compact dimensions of 160.0mm x 74.9mm x 39.1mm. It includes built-in protection circuits for inrush current, overcurrent, and overvoltage, enhancing reliability and safety. The power supply is approved by CE, cURus, and TUV, meeting stringent safety standards for commercial and industrial applications.
With an operating temperature range of -10°C to 60°C, this converter is suitable for various environments. It also offers 2kV of isolation voltage, ensuring safety between input and output circuits. The LGA150A-12 is an effective solution for powering electronic equipment in ITE and commercial settings.
85-132 VAC.
12 VDC at up to 12.5 A.
150 W.
-10°C to 60°C.
84.5% typical at full load.
2000 V.
Chassis mount, open frame package.
