| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

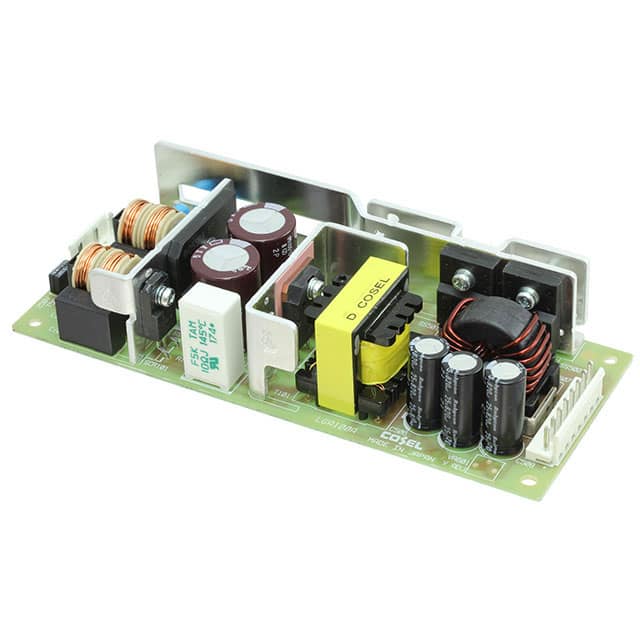

The Cosel LGA100A-3R3-Y is an AC/DC converter designed for ITE (Commercial) applications. It features an open frame construction and chassis mounting, making it suitable for integration into various systems.
This converter provides a stable 3.3V output voltage with a maximum current of 20A. Key electrical specifications include an input voltage range of 85-132V AC, an input frequency of 47-440Hz, and a typical efficiency of 76%. It also incorporates built-in overcurrent and overvoltage protection circuits.
With dimensions of 154.9mm x 62.0mm x 35.6mm, the LGA100A-3R3-Y offers a compact solution for power conversion needs. It operates within a temperature range of -10°C to 60°C and has an isolation voltage of 2000V between input and output.
85-132V AC.
3.3V nominal, adjustable from 2.85V to 3.63V.
20A.
-10°C to 60°C.
Chassis mount, open frame.
Overcurrent protection works over 105% of rating and overvoltage protection is set at 4.00-5.25V.
76% typical at full load.
