LGA100A-24-HY
Cosel

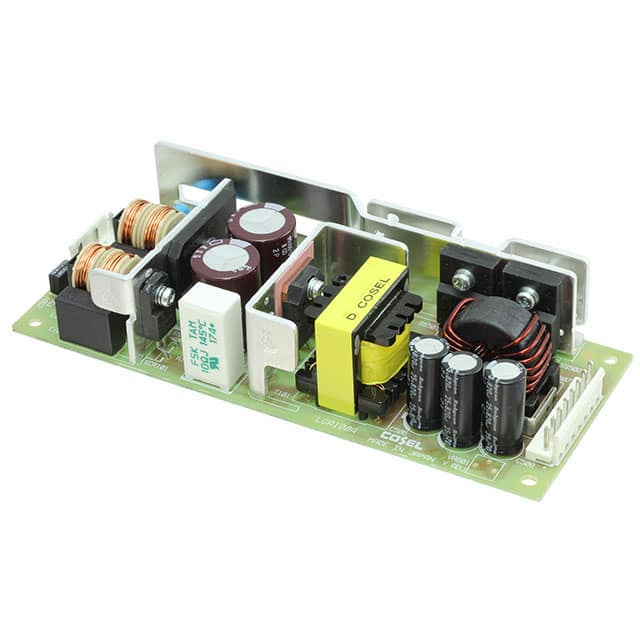

The Cosel LGA100A-24-HY is an open frame AC-DC converter providing a 24V output at 4.3A. It features a maximum wattage of 60W and an efficiency of 85.0%.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |
The Cosel LGA100A-24-Y is an open frame AC DC converter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 4.3A, providing a total output wattage of 60W.
This converter operates with an input voltage range of 85-132 VAC and a frequency range of 47-440 Hz. It boasts a typical efficiency of 85.0% at full load and includes built-in protection circuits for inrush current, overcurrent, and overvoltage.
The LGA100A-24-Y is designed for chassis mounting and features robust isolation with a 2000 VAC input-to-output rating. Its operating temperature range is -10°C to 60°C, making it suitable for various environmental conditions. Safety agency approvals include CE, cURus, and TUV.
The nominal output voltage is 24V DC.
The input voltage range is 85-132VAC.
The operating temperature range is -10°C to 60°C.
The converter is chassis mount with an open frame package.
Overcurrent protection activates above 105% of rating and recovers automatically. Overvoltage protection is set at 4.00-5.25V.
Typical efficiency is 85.0% at full load (Io=100%).
Dimensions are 154.9mm (length) x 62.0mm (width) x 35.6mm (height).
