| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

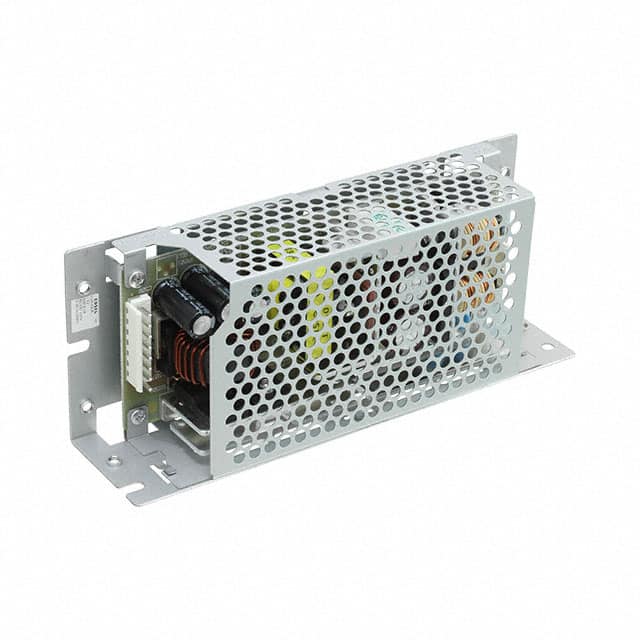

The Cosel LGA100A-24-SNY is a robust AC/DC power supply converter designed for ITE (Commercial) applications. This enclosed unit features a chassis mount for secure installation and provides a stable 24V DC output at 4.3A, with a maximum wattage of 100W.
Engineered for reliability, the LGA100A-24-SNY boasts an efficiency of 85.5% and operates within an input voltage range of 85-264 VAC across a frequency of 47-63 Hz. It includes built-in overcurrent (OCP) and overvoltage (OVP) protection circuits for enhanced safety. The converter meets stringent EMI standards, including FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
Key electrical specifications include a line regulation of 96mV maximum and a load regulation of 150mV maximum. The operating temperature range is -10°C to 60°C. Safety agency approvals include UL60950-1, C-UL(CSA60950-1), EN62368-1, CE, cURus, and TUV, ensuring compliance with international standards.
With its compact dimensions of 154.9mm x 62.0mm x 35.6mm, this AC/DC converter is suitable for various industrial and commercial electronic equipment designs requiring a dependable power source.
