| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

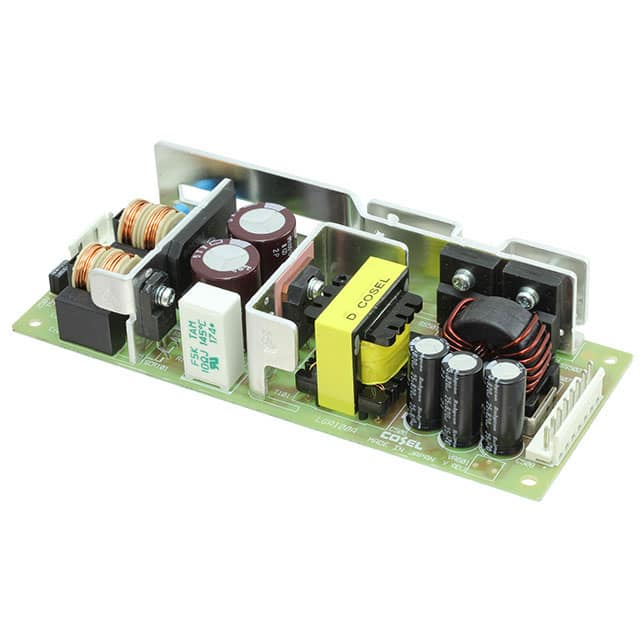

The Cosel LGA100A-24 is a versatile AC-DC power supply designed for ITE (Commercial) applications. It features an open-frame construction and chassis mount for easy integration into various systems. This power supply delivers a stable 24V DC output at 4.3A, providing a total output power of 103.2W.
Key electrical specifications include an input voltage range of 85-132 VAC and an input frequency range of 40-440 Hz. The unit boasts a high efficiency of 85.5% and includes built-in protection circuits for inrush current, overcurrent, and overvoltage. It also features a 2 kV isolation voltage between input and output.
The operating temperature range for the LGA100A-24 is -10°C to 60°C. Its compact dimensions are 154.9mm in length, 62.0mm in width, and 35.6mm in height, making it suitable for space-constrained designs. The power supply complies with safety agency approvals such as CE, cURus, and TUV, and meets EMI standards.
This model is designed for reliable performance in commercial environments, offering robust protection and efficient power conversion. It is supplied in bulk packaging.
The output voltage is 24 VDC.
The output current is 4.3 A.
The maximum output power is 103.2 W.
The efficiency is 85.5% at full load.
The operating temperature range is -10°C to 60°C.
The dimensions are 154.9mm x 62.0mm x 35.6mm.
It has CE, cURus, and TUV approvals.
