| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Type | |
| Voltage |

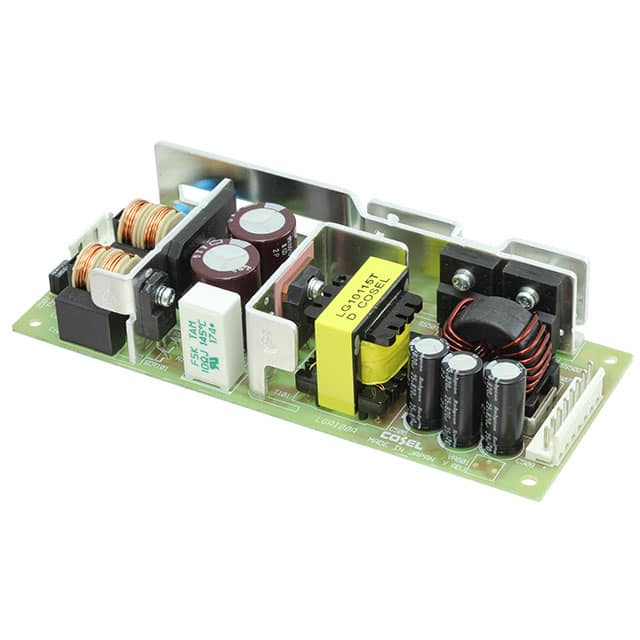

The Cosel LGA100A-15 is an open frame AC/DC converter designed for reliable power conversion in commercial applications. It features a 15V output voltage with a maximum current of 3.5A, providing a total output wattage of 52.5W. The unit operates with an input voltage range of 85-132 VAC and a frequency of 47-440 Hz, boasting an efficiency of 83% at full load.
This converter is built with essential protection circuits, including overcurrent and overvoltage protection, ensuring operational safety. It has a typical start-up time of 200ms and a hold-up time of 20ms. The operating temperature range is -10°C to 60°C, making it suitable for various environmental conditions. The isolation voltage between input and output is rated at 2000V for 1 minute.
Mechanically, the LGA100A-15 has dimensions of 154.9mm x 62.0mm x 35.6mm and is designed for chassis mounting. It holds approvals from CE, cURus, and TUV, and complies with RoHS3 standards. Its applications include ITE (Commercial) environments.
The output voltage is 15V nominal and the maximum output current is 3.5A, providing 52.5W maximum output power.
It accepts an input voltage range of 85-132 VAC at 47-440 Hz.
The operating temperature range is -10°C to 60°C.
The dimensions are 154.9mm (length) x 62.0mm (width) x 35.6mm (height).
Yes, overcurrent protection activates at 105% of the rated output current and recovers automatically.
Typical efficiency is 83% at full load (Io=100%).
Input to output isolation is 2000V AC for 1 minute.
