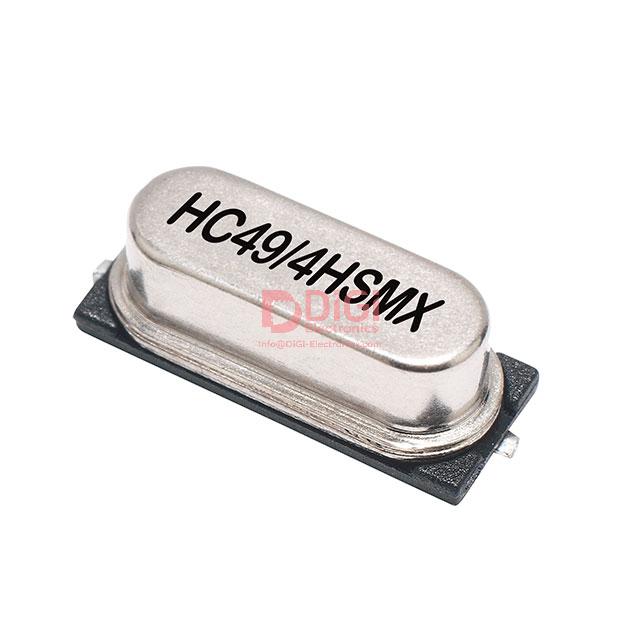

LFXTAL050510 The IQD Frequency Products LFXTAL050510 is an 8 MHz crystal with a ±30ppm frequency tolerance and 18pF load capacitance. It is designed for surface mounting in an HC-49/US package.
Mfr Part #:

LFXTAL050510

Available from 1 distributors
Mfr Name: IQD Frequency Products
IQD Frequency Products
The IQD Frequency Products LFXTAL050510 is an 8 MHz crystal with a ±30ppm frequency tolerance and 18pF load capacitance. It is designed for surface mounting in an HC-49/US package.
✓ Total Stock: 11 pcs
$ Price Range: $0.50

LFXTAL050510 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
11 pcs
On Request
11 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFXTAL050510 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Dimensions
Frequency
Frequency Stability
Frequency Tolerance
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Package / Case
Tape & Reel
View Similar Products (0)

LFXTAL050510 Description

Short technical summary and product information.

This LFXTAL050510 crystal from IQD Frequency Products operates at a frequency of 8 MHz with a frequency stability of ±50ppm and a frequency tolerance of ±30ppm. It features a load capacitance of 18pF and an equivalent series resistance of 40 Ohms. The crystal is designed for fundamental operating mode.



Designed for surface mounting, this component comes in an HC-49/US package. Its dimensions are 0.449" L x 0.150" W (11.40mm x 3.80mm), with a maximum seated height of 0.169" (4.30mm). The operating temperature range is -40°C to 85°C.

LFXTAL050510 Quick Information

Product Type: Crystal
Series: HC49/4HSMX
Canonical Name: IQD Frequency Products LFXTAL050510 Crystal
Subcategory: Crystals

LFXTAL050510 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFXTAL050510 Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

LFXTAL050510 Features

  • 8 MHz fundamental frequency crystal.
  • ±30ppm frequency tolerance.
  • 18pF load capacitance.
  • Surface mountable HC-49/US package.
  • Wide -40°C to 85°C operating temperature.

LFXTAL050510 Applications

  • Ideal for clock generation circuits.
  • Suitable for timing applications.
  • Used in embedded systems.
  • Applicable in communication devices.

LFXTAL050510 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the LFXTAL050510 crystal?

The operating temperature range is -40°C to 85°C.

What is the frequency tolerance of the LFXTAL050510 crystal?

The frequency tolerance is ±30ppm.

What is the load capacitance for the LFXTAL050510 crystal?

The load capacitance is 18pF.

What type of package is the LFXTAL050510 crystal in?

It is in an HC-49/US package.

Is the LFXTAL050510 crystal RoHS compliant?

The RoHS status is RoHS3 Compliant.
