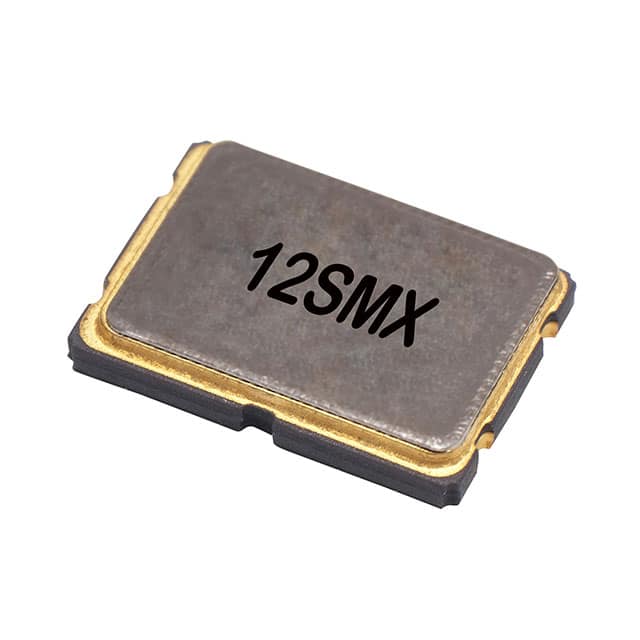

LFXTAL026380REEL Surface mount MHz crystal with 8 MHz frequency, 16pF load capacitance, ±30ppm tolerance, and 80Ω ESR in a 4-SMD no lead package.
Mfr Part #:

LFXTAL026380REEL

Available from 2 distributors
Mfr Name: IQD Frequency Products
IQD Frequency Products
Surface mount MHz crystal with 8 MHz frequency, 16pF load capacitance, ±30ppm tolerance, and 80Ω ESR in a 4-SMD no lead package.
✓ Total Stock: 1,815 pcs
$ Price Range: $0.81 - $0.84

LFXTAL026380REEL Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
974 pcs
On Request
974 pcs On Request 1 On Request On Request 2134 On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
841 pcs
On Request
841 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFXTAL026380REEL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Stability
Frequency Tolerance
Height
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
Tape & Reel
Type
Width
View Similar Products (0)

LFXTAL026380REEL Description

Short technical summary and product information.

The LFXTAL026380REEL is a surface mount MHz crystal from IQD Frequency Products. It operates at a fundamental frequency of 8 MHz with a frequency tolerance of ±30ppm and frequency stability of ±50ppm. The crystal requires a load capacitance of 16pF and has an equivalent series resistance of 80Ω.



Designed for general purpose timing and clock generation applications, this crystal operates over a temperature range of -20°C to +70°C. It is housed in a compact 4-SMD no lead package measuring 7.00mm x 5.00mm with a height of 1.40mm, suitable for automated surface mount assembly.



The part is RoHS3 compliant and has an MSL of 1 (unlimited). It is supplied in tape and reel packaging for volume production.

LFXTAL026380REEL Quick Information

Product Type: Crystal
Canonical Name: IQD Frequency Products LFXTAL026380REEL 8 MHz Crystal
Subcategory: Surface Mount Crystal

LFXTAL026380REEL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFXTAL026380REEL Estimated Pricing

Qty Low High
1,000+ $0.84 $0.84
5,000+ $0.81 $0.81

Estimated market price range - modelled values for guidance only, not live distributor offers.

LFXTAL026380REEL Features

  • 8 MHz fundamental mode crystal.
  • ±30ppm frequency tolerance.
  • 16pF load capacitance rating.
  • 80Ω maximum equivalent series resistance.
  • Surface mount 4-SMD no lead package.

LFXTAL026380REEL Applications

  • Used in microcontroller clock circuits.
  • Suitable for communication interface timing.
  • Ideal for consumer electronics timing.
  • Applicable in industrial control systems.

LFXTAL026380REEL FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency of the LFXTAL026380REEL crystal?

The frequency is 8 MHz.

What is the load capacitance of this crystal?

The load capacitance is 16 pF.

What is the frequency tolerance?

The frequency tolerance is ±30 ppm.

What is the operating temperature range?

The operating temperature range is -20°C to +70°C.

What package does this crystal come in?

It comes in a 4-SMD, no lead package.

Is this crystal RoHS compliant?

Yes, it is listed as RoHS3 Compliant.

What is the equivalent series resistance (ESR)?

The ESR is 80 Ω.
