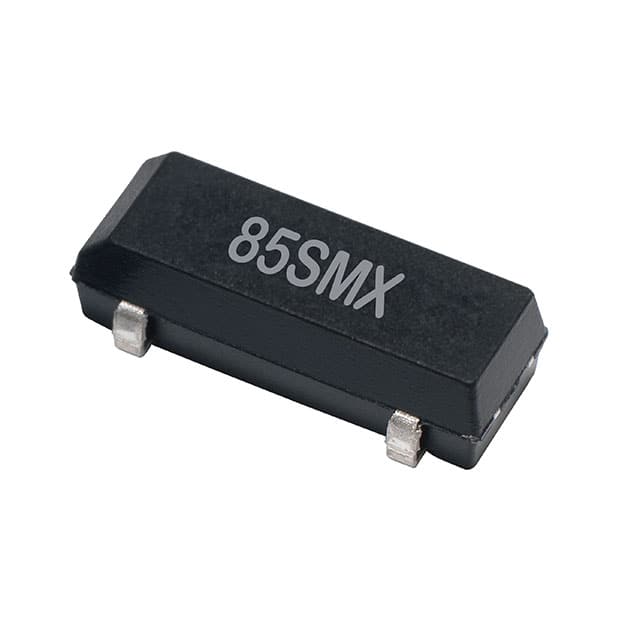

LFXTAL016178REEL The LFXTAL016178REEL is a 32.768 kHz tuning fork crystal from IQD Frequency Products. It features a 6pF load capacitance, ±20ppm frequency tolerance, and a maximum ESR of 50 kΩ.
Mfr Part #:

LFXTAL016178REEL

Available from 1 distributors
Mfr Name: IQD Frequency Products
IQD Frequency Products
The LFXTAL016178REEL is a 32.768 kHz tuning fork crystal from IQD Frequency Products. It features a 6pF load capacitance, ±20ppm frequency tolerance, and a maximum ESR of 50 kΩ.
✓ Total Stock: 25,500 pcs

LFXTAL016178REEL Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
25,500 pcs
On Request
25500 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

LFXTAL016178REEL Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
ESR (Equivalent Series Resistance)
Frequency
Frequency Tolerance
Height
Lead Spacing
Length
Load Capacitance
Mounting Type
Operating Mode
Operating Temperature
SVHC Present
Tape & Reel
Type
Width
View Similar Products (0)

LFXTAL016178REEL Description

Short technical summary and product information.

The LFXTAL016178REEL is a 32.768 kHz tuning fork crystal manufactured by IQD Frequency Products. This surface mount device operates in fundamental mode and is designed for precision timing applications requiring a low-frequency reference.



Key electrical specifications include a nominal frequency of 32.768 kHz, a load capacitance of 6 pF, a frequency tolerance of ±20 ppm, and a maximum equivalent series resistance (ESR) of 50 kΩ. The crystal is rated for an operating temperature range of -40°C to +85°C.



The component is housed in a 4-SOJ package with a 5.5mm pitch, measuring 8.70mm in length, 3.80mm in width, and 2.50mm in height. It is designed for surface mount assembly, making it suitable for automated manufacturing processes.

LFXTAL016178REEL Quick Information

Product Type: Crystal
Canonical Name: IQD Frequency Products LFXTAL016178REEL 32.768 kHz Surface Mount Crystal
Subcategory: Crystals

LFXTAL016178REEL Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

LFXTAL016178REEL Features

  • 32.768 kHz tuning fork crystal.
  • 6 pF load capacitance rating.
  • ±20 ppm frequency tolerance.
  • 50 kΩ maximum ESR.
  • Surface mount 4-SOJ package.

LFXTAL016178REEL Applications

  • Real-time clock (RTC) timing reference.
  • Low-power timing for portable devices.
  • Embedded system clock generation.

LFXTAL016178REEL FAQs

6 frequently asked questions generated from this part’s specifications.
What is the frequency of the LFXTAL016178REEL crystal?

The nominal frequency is 32.768 kHz.

What is the load capacitance of this crystal?

The load capacitance is 6 pF.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What is the package type for the LFXTAL016178REEL?

The package is 4-SOJ with a 5.5mm pitch, measuring 8.70mm x 3.80mm x 2.50mm.

What is the frequency tolerance of this crystal?

The frequency tolerance is ±20 ppm.

What is the maximum ESR for this crystal?

The maximum equivalent series resistance (ESR) is 50 kΩ.
