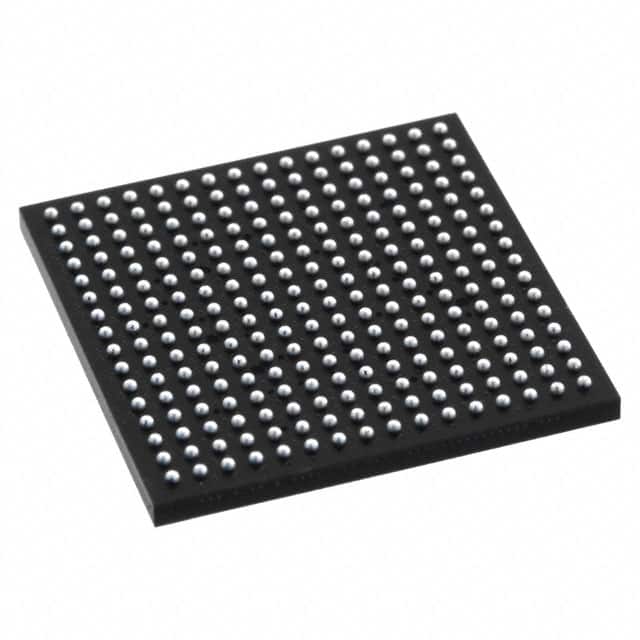

The Lattice Semiconductor LFXP2-8E-5FTN256C is a Field Programmable Gate Array (FPGA) from the LatticeXP2 family. It offers 8000 logic elements and 1000 LABs, with a total of 226304 RAM bits.
This FPGA provides 201 I/O pins and operates within a voltage range of 1.14V to 1.26V. The operating temperature is specified as 0°C to 85°C (TJ).
The device is available in a 256-FTBGA (17x17) package and utilizes surface mount technology. Its standard package is listed as 256-LBGA.
Key features include flexiFLASH architecture for instant-on capability, Live Update Technology with secure updates, and sysDSP blocks for high-performance multiply and accumulate operations. The device also supports flexible I/O buffering with sysIO.
The LFXP2-8E-5FTN256C FPGA has 8000 logic elements.
The LFXP2-8E-5FTN256C FPGA has 201 I/O pins.
The operating voltage for the LFXP2-8E-5FTN256C FPGA is between 1.14V and 1.26V.
The LFXP2-8E-5FTN256C FPGA is supplied in a 256-FTBGA (17x17) package.
The operating temperature range for the LFXP2-8E-5FTN256C FPGA is 0°C to 85°C (TJ).
The LFXP2-8E-5FTN256C FPGA has a total of 226304 RAM bits.
