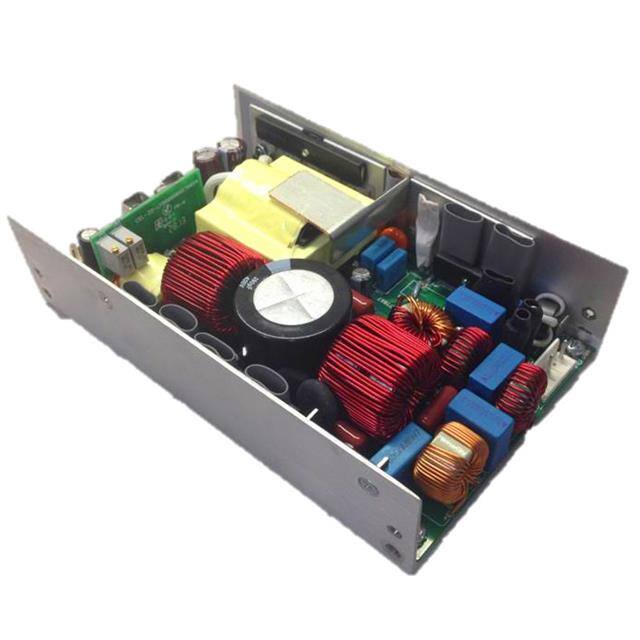

The EOS Power LFWLT450-1002-S is a versatile AC/DC power module designed for industrial applications. It provides a single 15V output at 16.66A, with a continuous power rating of 250W, capable of reaching 450W with forced air cooling. This enclosed unit features a universal input voltage range of 90-264 VAC or 120-390 VDC and includes Power Factor Correction (PFC).
Designed for reliability, the LFWLT450-1002-S operates within a temperature range of 0°C to 70°C and boasts an MTBF of 1.28 million hours. It incorporates essential protections such as over-current, over-voltage, and over-temperature protection, along with short-circuit protection for autorecovery. The converter supports features like adjustable output, load sharing, and remote on/off/sense capabilities.
With dimensions of 200.0mm x 101.6mm x 42.2mm, it is suitable for chassis mounting. The unit is compliant with CE, cUL, Nemko, and UL safety standards, making it a robust choice for ITE (Commercial) applications requiring stable and efficient power conversion.
0°C to 70°C with derating; start-up guaranteed from -20°C.
90-264 VAC or 120-390 VDC.
15V at 16.66A.
Over current (120-150% hic-up), over voltage (>114% latch), short circuit (autorecovery), over temperature (130°C autorecovery).
1.28 million hours per Telcordia SR-332.
200.0 x 101.6 x 42.2 mm.
